BMP-3

PRODIGY


The BMP-3 is a third-generation IFV designed, produced and currently in service of the Russian Army. It is the successor to the BMP-2, which was found out to be highly unsatisfactory for a number of reasons. When revealed to the public in the 45th Victory Day Parade in 1990, it surprised foreign observers by its unusually heavy armament, which remains unsurpassed even today in terms of pure caliber size. Throughout the years, it has proven to be a solid IFV while in the service of several nations across the globe.

The history of the BMP-3 is short and straightforward. The Army was aware of the multitudes of shortcomings of the BMP-2, as revealed in Afghanistan. As such, the Army requested for a new IFV design with improved characteristics. Two drafts were submitted, one by Kurganmashzavod. The BMP-3 chassis was adapted from the Obyekt 688 light tank's, which resulted in less than optimal troop dismounting provisions, but otherwise gave a very good armouring and arming potential. It was necessary to raise the hull, thicken the glacis and front armour plate, change the turret ring construction and create a passenger space, among other things. This design was accepted, but on the condition that a new armament suite was developed for it.

Obyekt 688. This light tank had a 30mm 2A42 autocannon, an AGS-17 automatic grenade launcher and two 9M113 Konkurs missiles, combined with an unmanned turret and very modern hull design




The Obyekt 688 itself, no matter how revolutionary, remains consigned to the Kubinka tank museum:



The BMP-3 had improved upon its predecessors in many ways. First and foremost, the improvement lay in passenger comfort, which the earlier BMPs had a shortage of, to put it mildly. Everything else was improved in general.





In January 1985, the state tests of the BMP-3 was initiated with a total number of four vehicles involved in the tests. The tests were conducted in Kubinka, Smoline, Kelayta and Alageze, which the vehicles passed, but on which became known a number of defects.

A final cycle of tests which were conducted from March 1988 to May 1989 where a BMP-3 unit of 10 vehicles from the Belorussian Military District participated in an "experimental field operation" as part of an organic mechanised rifle company. These tests were aimed at determining how quick soldiers could master the new vehicle, estimating the effectiveness of the recently improved BMP-3 (multiple malfunctions recorded during tests of early BMP-3 models) and determining the quality of the series-produced examples involved in the test. The experimental field operation demonstrated the superiority of the BMP-3 over the BMP-1 and BMP-2 in terms of tactical and firepower characteristics.

In 1990, the BMP-3 was formally adopted by the Russian military.




COMMANDER'S STATION




The commander is seated on the right side of the turret, neighbouring the gunner. He is responsible for observing the battlefield and designating targets for the gunner to subsequently engage. To do this, he is equipped with a TKN-3MB day/night surveillance device and an array of 1x periscopes for general vision.




There are two fixed TNPO-170A periscopes mounted into the fixed half of the cupola at his disposal, and two additional periscopes embedded in the hatch, pointed to the sides. There is also a TNPT-3 rear-viewing prism with a total range of vision of 54° in the vertical plane and a total range of vision of 118° in the horizontal plane. The TNPT-3 is primarily used to help direct the driver when reversing the vehicle. All viewing devices are mounted on the rotating cupola. The periscopes are heated by the RTS heating system to prevent fogging in cold weather.







TKN-3MB





On most variants of the BMP-3, the commander is provided with the TKN-3MB. It can operate in two modes - active infrared imaging, or passive light intensification. When operating at night in the active mode, the OU-3GA2 IR spotlight must be used. The TKN-3MB sight has fixed 5x magnification in the day channel, and an angular field of view of 10° in that setting. In the night channel, the sight has 3x magnification, and an angular field of view of 8°. In the daytime, the nominal maximum identification distance for a tank is around 3000 m, though this depends on meteorological conditions more than anything else. On the passive light intensification mode, the sight enables the commander to identify a tank-type target at a nominal maximum distance of 400 m, given that the ambient light is no darker than 0.005 lux, which is equivalent to a typical starless and moonless night. The viewing distance increases as ambient light levels increase, allowing the commander to potentially see and identify a tank at up to 1000 m at the dark end of twilight.

The TKN-3MB has a stadiametric rangefinding scale intended for approximate manual range estimation of tank-sized targets 2.7m tall at up to a distance of up to 3.2km, although this might be a little optimistic for most situations. The ability to accurately determine the real distance depends on whether both the BMP-3 and the target are moving, and on the commander's visual acuity. But without perfect 20/20 vision, huge ranging errors in the order of hundreds of meters are to be expected, especially as the distance increases.



Like in all other Soviet tanks and IFVs prior to the BMP-3, the commander of the vehicle can designate targets by pressing the thumb button on the right handle on the TKN-3MB periscope. The cupola is equipped with a counter-rotating motor to keep the commander in his original orientation as the turret spins to meet the target. The maximum error is 10 mils, which makes the target designation feature infeasible for actually laying the gun on target. Rather, this feature is only to put the gunner in visual contact with the target - the rest is entirely up to the gunner once he has the target in his sights.


TKN-AI



Later production models of the BMP-3 (these would also be equipped with the SOZh gunner's sight) will be instead equipped with the TKN-AI pseudo-binocular day/night passive-active observation device, which replaces the TKN-3MB. The TKN-AI enables day and night observation using natural light and also using a IR laser pulse-spotlight. When the TKN-AI is used in the pulse mode, it can detect a tank-type target at a distance of 1000 m. Pulsing the laser prevents backscatter when viewing through thick fog or haze. Reduction of backscatter increases the light penetration through the atmosphere, which has the effect of improving the viewing distance under poor weather conditions.

Additionally, the laser spotlight can be used as a rangefinder with the TKN-AI at a distance of between 200 m and 3000 m. The accuracy of the rangefinding function is 20 m. Using the Gen 2+ image intensifier module, the target identification range achievable using the TKN-AI for a tank-sized target is 600 m. The sight has a fixed magnification of 4.75x in day channel and 5x in the night channel.

At night, the commander can detect enemy optronics (IR radiation emitters) at distances up to 3 km.



The commander is provided with an R-173 radio for inter-vehicle communications. The R-173 radio is an FM radio that can operate in 10 preset frequency modes, with the ability to mechanically switch frequencies in 3 seconds. It is currently outdated and has been replaced with the R-168 frequency-hopping radio set with the ability to send encrypted data and switch frequencies 100 times per second.

The commander is also provided with a P-174 intercom device. Both the radio and intercom systems are directly routed to the commander's headset and throat mike, which are both integrated elements of the iconic Russian tanker's helmet. The throat mike system is highly beneficial for audio clarity.

The navigation suite of the BMP-3 appears to be an inertial one. It is quite likely that the installation of a GPS/GLONASS navigation suite is either underway or will be in the near future.


Unlike the BMP-2, the commander of the BMP-3 has completely duplicated gunnery controls at his disposal. The upper right corner of the picture below (screenshot taken from the "Poligon" show aired on the Rossiya 2 channel) shows the commander's weapons management console. The silver box to the left of it is a KR-80 relay box, and the gray box to the left of that is a power supply box.




The weapons management console displays the ammunition reserve of the specified weapon type, readiness state of the weapons, and allows the commander to select the desired ammunition types for both the 30mm and 100mm cannons. The console also enables the commander to select the rate of fire of the 2A72 30mm cannon. The weapons management console must be switched on before the weapons can be used. In the case of the 100mm cannon, the commander is able to switch to missile firing mode, but he himself cannot fire guided missiles since his 1PZ-10 sight lacks the necessary provisions. Stabilizer controls are located on the commander's handgrips.



1PZ-10



The commander is equipped with the 1PZ-10 monocular dual-purpose sight with dependent stabilization in the vertical plane. The sight is broadly similar to the 1PZ-3 sight used in the BMP-2, except of course, the modifications to enable 100mm rounds to be used.

The 1PZ-10 sight has 1.2x to 4x magnification. In the 1.2x magnification setting, the field of view is 49 degrees, narrowing down to 14 degrees in the 4x magnification setting. Like the gunner's PPB-2 sight, the 1PZ-10 is very flexible. It can elevate by +81 degrees and depress by -10 degrees, enabling it to target both aircraft and ground targets. It cannot, however, automatically track its targets, nor can the commander fire guided missiles using the 1PZ-10 sight as it has no guidance channel.




The sight is stabilized in the vertical plane by piggybacking on the weapons stabilization via a pair of mechanical rods. Since the stabilization mechanism interfaces with lenses and prisms inside the sight housing, the housing itself remains static as the stabilizer does its work, so the commander does not need to adjust his head backwards and forwards as his face is pressed up against the eyepiece.

Unlike the crude PPB-2, 1PZ-10 features the familiar Soviet-style range scale system. A fixed horizontal bar runs across the lower third segment of the sight picture, and the reticle with range scales for all ammunition types for all three weapons on the BMP-3 is placed in the center. To use this sight, the commander simply turns a dial to move the reticle until the desired range scale for the desired ammunition type intersects with the horizontal bar. For example: If the commander wishes to open fire with the 2A72 cannon at a congregation of enemy infantry at 1.6 kilometers, he simply twists the range adjustment dial until the range scale marked "16" for "30 OF" intersects with the horizontal bar. The reticle will be displaced for that particular ammunition type for that particular range. All the commander must do now is lay the reticle on the target and open fire.

The photo below shows the sight under 1.2x magnification. You can see the aforementioned range scales and horizontal bar.







GUNNER'S STATION


Gunner's hatch.

The gunner is provided with two TNPO-170A periscopes, one aimed forward and the other aimed to the left for some little useful added situational awareness, a PPB-2 anti-aircraft sight, and a P-174 intercom device. The gunner is also provided with a simple turret azimuth indicator. He has his own oval hatch.

As you can see in the picture below (screenshot taken from the "Poligon" show aired on the Rossiya 2 channel), the gunner is provided with a weapons management console, the same as the type installed in the commander's station.




The gunner is responsible for the fire control system and the stabilizer. He is provided with a set of handgrips (shown below), with which he can control the turret and the stabilizer system.





SIGHTING COMPLEXES


1K13-2




In the baseline BMP-3, the gunner is provided with the 1K13-2 weapons sight/guidance unit which acts both as his primary gunsight and as the means for him to guide ATGMs. It can be used for observation both in daylight and night, with independent stabilization of the visual field in two planes.

The 1K13-2 weapons sight with passive-active night channel has a 5000m sighting range, and can identify tank-sized targets at that distance in daylight hours. It has day/night channels with a digital heads-up display that reads out the range to the target after lasing. It has an 8x maximum magnification in the day channel, and 5.5x in the night channel. The field of view is 5 degrees at 8x magnification with the day channel, and 6 degrees and 10 minutes in the 5.5x magnification with the night channel. Nighttime viewing is limited to an 800m sighting range in the passive mode (light intensification), which requires a minimum of 0.005 lux (a typical moonless, starlit night) to achieve. The sighting distance increases as ambient light increases in brightness, so a viewing distance of up to 1500m is possible in dusk or dawn. The viewing distance is expanded in the active mode to 1100m with the use of the OU-5-1 IR spotlight. The sight's active setting captures shortwave infrared light, the same sort of light used by nightvision video cameras, which means that it works independently of visible lighting conditions. Thermal imagers cannot pick up this type of light, so they will be unable to see the beam emitted by the spotlight, but the spotlight, which operates on 800W, does put out a lot of heat, which thermal imagers can see.



Actually a view through the 1K13-49 sight, but it's close enough

  An inherent shortcoming to the usage of IR spotlights is that other vehicles can see the light as well, along with its source. The inverse also applies, which means that the BMP-3 can easily see and engage enemy tanks maneuvering in the dark without switching on its own spotlight. Like turning on a flashlight in the dark, you may not be able to see very far, but anyone can spot you from miles away.
  Infrared imaging sights will not be able to pick up the infrared light emitted by the spotlight. Thermal imaging sights operate in the 8-15 micrometer wavelength while the IR light emitted and used is in the 0.75-1.4 micrometer wavelength (Contrary to what was previously claimed by the author).

1K13-2 weapons sight
Gunner's workstation, with 1K13-2 weapons sight


The baseline BMP-3's fire control system includes the 1V539 ballistic computer, a crosswind sensor, ambient air temperature sensor and a 1D16-3 laser rangefinder. Roll, speed and vehicle course angle sensors are included to register and compensate for any changes in the movement of the vehicle. The nominal range of the 1D16-3 rangefinder is between 500m to 4000m with a margin of error of 10m. If necessary, the gunner can manually enter range data calculated through the stadiametric ranging scales on the 1K13-2 sight into the ballistic computer in the event of rangefinder malfunction. The PL-088 fire control switch for the 2A72 autocannon is at the disposal of the gunner.


The 1D16-3 laser rangefinder was initially unreliable. Reportedly, it began to refuse to operate past 2000 cycles, but this was soon rectified, and the TBF (time before failure) increased to 15000 cycles. The 1K13-2 sight, like the 1D16-3, originally had low reliability as well. In initial tests, it began experienced failures past just 500 cycles of operation. This was later resolved, and time before failure (TBF) was raised to 5600 cycles. The operating time limit of the sight was originally a measly 60.9 hours, but it was raised to 210 hours.


The 1D16-3 laser rangefinder and the OU-5-1 IR searchlight can be seen in good detail here.
The 1D16-3 laser rangefinder, which is mounted over the 100mm barrel.

Here are two of the gunner's sights. The 1K13-2 main weapons sight is the larger of the two, and the PPB-2 is the smaller one.
The spotlight immediately in front of the viewer is the OU3-GA2. The one in the foreground is the OU-5-1.


SOZh



In later models of the BMP-3, the gunner is be equipped with the SOZh day/night gunner's sight with a PPN-D integrated laser rangefinder. The new sight has automatic target tracking, improved day and night channels, a heads-up display, and stabilization in two planes. The daytime channel has 1x, 4x and 14x magnification settings. The field of view is 20° for the 1x setting, 12° for the 4x setting, and 3.5° for the 14x setting. The greatly increased magnification gives the sight a very significant advantage over previously used sighting complexes in terms of target identification clarity at longer distances.

The view from the sight under 1x magnification can be seen in the two photos below:




The sight picture under 14x magnification is seen below, taken from a screenshot from the "Poligon" show aired on the Rossiya 2 channel.




It has a nominal maximum distance of 7000m for identification of tank-sized targets in daytime, but this is rather impossible in actual use. With that in mind, it should be noted that despite the extended identification range as compared to FLIR sights, non-FLIR sights like the SOZh are far more seriously affected by weather conditions. Foggy conditions, snow storms, heavy rain, all serve to reduce the effectiveness of these sights. The accuracy of the stabilization of the field of view is 0.1 mils when the vehicle is static.




Nighttime identification range for a tank-sized target is 800 m in the passive mode, and 1100 m in the active mode, whereby the PL-1 IR laser pulse beamer mounted coaxially to the guns (see above) is used. The PL-1 is a programmable IR laser pulse beamer that can emit modulated laser signals, giving it an additional utility as a laser rangefinder. However, it is not used in that capacity on the BMP-3 since the SOZh sighting system has an integrated rangefinder with greater accuracy than the PL-1 is capable of. The PPN-D integrated laser rangefinder has a ranging error margin of around 10 m. PL-1 is only used as a source of infrared light for active infrared imaging night vision.

The PL-1 laser beamer was developed by the BelOMO optical and mechanical company. The device runs on 50 volts, and connects directly to the 27A electrical system of the vehicle. The OU-6 laser beamer is functionally equivalent to the PL-1, so the two of them can be used interchangeably. PL-1 projects a much more consistent and more intense beam of infrared light than a regular xenon IR spotlight, making it much easier to see faraway objects even in the presence of interference.


The passive mode requires lighting conditions of at least 0.005 lux in order to achieve the aforementioned identification range, like the earlier 1K13-2.


PL-1 IR laser beamer

The maximum divergence of launched ATGMs from alignment to the guidance channel and sighting system is 0.5 m. In other words, the maximum distance the missile will stray from the line of sight of the guidance channel is 0.5 m.


The picture below - another screenshot taken from the "Poligon" episode - shows the gunner's workstation with SOZh. You can also see the PPB-2 sight to the right, and the two periscopes to the left.




Currently, the SOZh sight is the standard gunner's sight on almost all Russian BMP-3s except for the earliest ones.


Since the beginning, the BMP-3 was equipped with a 1V539 digital ballistic computer. 1V539 can process five programmable ballistic factors and calculate ballistic solutions for ranges up to 5000 meters. The ballistic computer takes 10 seconds to boot up when the power supply is connected, and it can run continuously for 6 hours. Ballistic calculations are done instantaneously.



Vesna-K


The Vesna-K is a newer main sight, first seen in the 1990's. It features thermal imaging, an integrated laser rangefinder, and an AST-B automatic target tracking unit. The nominal maximum detection range of a target is 6500 m, and the identification range of a tank-type target is 4500 m. The Vesna-K sight has a temperature sensitivity of 0.1 degrees Celsius, and can switch between either wide or narrow field of view settings. The field of view in the wide setting is 9 x 6 degrees, and 3 x 2 degrees in the narrow setting. Under maximum electronic magnification, the field of view is 1.5x1 degrees.

The AST-B tracking device has a tracking accuracy of 0.17 mils. It can track anything from people to low flying aircraft, though the anti-aircraft sight will have to be used to engage high flying aircraft or aircraft flying overhead.


Azerbaijani BMP-3s do not use IR searchlights, because the Vesna-K doesn't need any.

It must be noted that Vesna-K is not a fire control system, just a sight. It is installed next to the Sozh, and acts as the de-facto night sight. A BMP-3 equipped with Vesna-K will still have the 1K537 ballistic computer.

To identify what sighting system a BMP-3 is equipped with, look whether the indicated (<---) device is a single-window or double-windowed one. Single-windowed ones are invariably either 1K13-2 sights or SOZh sights, and BMP-3s with 1K13-2 sights invariably come with the 1D16-3 laser rangefinder. Double-windowed ones have a Vesna-K.


The Russian Army has been refitting their BMP-3s with SOZh sights since at least 2008, but the Vesna-K has not proliferated due to financial reasons.



PPB-2


The PPB-2 weapons sight is a monocular dual-purpose sight mounted to the right of the gunner's primary sight, between it and the breech guard of the 2A70 cannon, which you can see in the photo below. To facilitate aiming at high altitude targets, it can look upwards by 81 degrees, and down by 10 degrees. It has a field of view of 25-28° at a fixed 2.47-2.6x magnification. It is marked with range scales for all onboard weapons as well as lead markers for leading aerial targets travelling at speeds not more than 250 m/s.




This sight is purely for backup usage only, as it is a bare bones design with only the most essential working components inside it. As you can see in the photo above, the sight is surrounded by exposed nuts and screws and the sight itself has no dials, buttons or switches, indicating that there are no adjustments can be made by the gunner in the field without a tool. It is interesting to note that PPB-2 only weighs 3.42 kg, compared to the more serious 1PZ-10 which weighs 18 kg.




STABILIZERS



The BMP-3 is equipped with the 2E52 electro-mechanical stabilizer. This stabilizer enables very high accuracy firing through the use of two EDM-20M electric motors. The two motors are identical in performance and precision; one drives the gun elevation mechanism and one drives the turret traverse mechanism. A significant advantage of the all-electric nature of the stabilization system is that there is no dangerous flammable hydraulic fluid being pumped at high pressure around the turret, so that if the armour is perforated, the chances of the vehicle catching fire is greatly reduced. Not having any plumbing inside the turret also makes it easier to maintain the vehicle. Furthermore, hydraulic pumps are bulky, noisy and consume a lot of power, so omitting one from the BMP-3 gives it better fuel economy and adds comfort for the crew. Another important advantage is that the electrical endurance of the BMP-3 while laying in ambush with engines off is better, though still rather limited as the vehicle lacks an APU.




The stabilizer complex includes the 1B14 gyroscopic roll sensor. This gyroscopic sensor takes two minutes to power up to its operating speed, which is done when starting the vehicle. The warranty period is 1500 hours of operation. Besides that, there is also the PT115ks-1G angular position sensor and the TGP-5 accelerometer.

The 2E52 system operates in three possible modes; automatic, semi-automatic and guiding. The automatic and semi-automatic modes are similar to the modes of the same name featured in the 2E36 stabilizer complex for the BMP-2. In the automatic mode, the operation of the stabilizer is simplified and easily understood: the stabilizer keeps the weapons stable and aimed at the target with maximum precision as the vehicle moves. This is a general purpose mode meant for shooting at land targets and at hovering or slow-moving air targets. The technical manual for the BMP-3 lists these figures for the automatic mode:


Maximum Gun Elevation Speed: 6 °/s
Minimum Gun Elevation Speed: 0.02 °/s

Maximum Turret Traverse Speed: 30-35 °/s
Minimum Turret Traverse Speed: 0.02 °/s


The manual vaguely mentions that the speed of turret traverse in the "overcharge" condition is 35 °/s, but it does not mention the maximum traverse speed for the automatic mode without "overcharge". I interpret this to mean that the turret traverse speed has a hard limit of 35 °/s that can be reached by simply turning the control handles left or right to the furthest possible position.

The median deviation from the point of aim in the automatic mode when the vehicle is in motion at a speed of 25km/h is not more than 0.5 mils, which is equivalent to a deviation of 1.69 MOA. This means that the BMP-3 can engage targets while moving at low speeds with essentially the same effectiveness as when it is immobile, and it can confidently engage small sized targets such as APCs and IFVs at sub-kilometer ranges while moving at medium to high speeds. The quality of the stabilizer can be considered on par with contemporary analogues in this regard (and by contemporary, I am referring to the Bradley M2A1 and the Warrior, and not the very latest developments like the Puma).


The semi-automatic mode is meant only for engaging air targets flying by or over the vehicle at high speeds at closer ranges. The acceleration and top speeds of the motors for both the traverse and elevation motors are boosted, at the cost of a great reduction in aiming precision. As it operates, the stabilizer will experience drift at a rate of 25 mils/min, meaning that the stabilizer will drift off target by 1.4 MOA as each second passes when left in continuous operation maintaining its aim at a single point as the vehicle moves sideways. This is not good performance, especially since this figure is already adjusted to include periodic drift compensation by the stabilizer complex. Nevertheless, it is mostly irrelevant since this stabilizer mode is only intended for a rather niche role.


Maximum Gun Elevation Speed: 35 °/s
Minimum Gun Traverse Speed: 0.1 °/s

Maximum Turret Traverse Speed: 35 °/s
Minimum Turret Traverse Speed: 0.1 °/s


The "guiding" mode is a new addition. It is only used for guiding tube-launched anti-tank guided missiles. The maximum speed of turret rotation in the guided mode is electronically limited to only 2.5 /s in order to prevent the gunner from accidentally breaking laser contact with the missile while tracking a target. The minimum gun laying speed is the same.


Maximum Gun Elevation Speed: 2.5 °/s
Minimum Gun Elevation Speed: 0.02 °/s

Maximum Turret Traverse Speed: 2.5 °/s
Minimum Turret Traverse Speed: 0.02 °/s


As usual, the gunner's handgrips follow the traditional "Cheburashka" configuration. In fact, the handgrips are the same ones used in the BMP-2. The commander gets his own pair to take control of the weapons when in commander override mode. Turret slewing is done by turning the handgrips turntable style, as opposed to a steering wheel style as is common on NATO analogues. The stabilizer complex needs two minutes to activate. When not in battle, the stabilizer must be set to the standby mode in order to prevent overheating. Upon entering combat, the stabilizer can be switched on, whereby it only requires a second or two to achieve full functionality.




Gunner's handgrips



ARMAMENT





The 2K23 armament system is housed in a fully traversable turret, consisting of a single 100mm 2A70 low-pressure rifled gun, a 30mm 2A72 autocannon, and a 7.62x54mm PKT co-axial machine gun, and their associated aiming and firing devices. All three weapon systems are located on the same mounting cradle, which provides +60 degrees maximum elevation and -6 degrees maximum depression when the turret is facing the front, and +64 degrees elevation and -2 degrees depression when facing the rear. The cradle is in turn installed in the 5-ton turret (when combat loaded), which is fitted into a 1980mm diameter turret ring.





2A72






A 2A72 long-recoil, dual-feed autocannon is mounted beside the 2A70. The 2A72 has a rate of fire of 350 to 400 rounds per minute - far lower than the 550 to 800 rounds per minute of the 2A42 but still double that of its immediate competitors'. This was the result of a deliberate compromise to reduce the weight of the cannon assembly, reduce recoil and simplify the action for maximum reliability and minimum upkeep while still maintaining a relatively high rate of fire. The relatively high rate of fire enables this cannon to be used in an anti-aircraft role.







The cannon has an extremely compact and lightweight receiver, making it ideal for small and light turrets. The forward ejection system and long-recoil operation ensures that no fumes enter the fighting compartment. The entire cannon has a total weight of only 84 kg, nearly half that of the Mk44 (156 kg), and even lighter than the RARDEN (113 kg), a similar long-recoil operated 30mm cannon. Considering the fact that the 2A72 is belt-fed and has selectable feeding, it is remarkable that the 2A72 is smaller and lighter than the clip-fed RARDEN.

The barrel weighs 36 kg and measures 2500mm in length. The entire cannon measures 3006mm in length. The light weight and thinness of the barrel can prove to be something of an issue if firing for prolonged periods due to barrel warping and elongation, which can interfere with the ballistic properties of fired projectiles. This is somewhat offset by the guide tube affixed to the end of the 100mm cannon, but the elongation of the cannon when sufficiently heated can lead to changes in the pattern of the rifling, resulting in deviations in projectile rotation speed, which in turn results in less-than-predictable shot patterning over very long distances. Nevertheless, the cannon configuration enables it to attain a more than reasonable standard of accuracy. The barrel of the 2A72 is considerably heavier than that of the RARDEN, which had a 24.5 kg barrel of around the same length (2.44 m). The heavier barrel of the 2A72 enables it to fire multiple bursts at a sustained rate without overheating, whereas the barrel of the RARDEN limits it to semi-automatic fire.

The video below, taken from the Kurganmashzavod website, shows the cannon firing off 5-round bursts at full auto at a tank-sized target from 1220 meters away while on the move, using the AST-B target tracker. The BMP-3 in the video seems to score 4 hits out of 5 on the first volley, but only one shot met the target on the second.




Not very incredible, but it has the excuse of having obsolete ammunition being a debilitating factor. The BMP-3 in the video used used old, lower velocity full caliber APBC rounds and not APDS rounds.


The 2A72 features forward ejection and can be fired in either single-shot or in automatic mode. This cannon is simpler, more efficient and lighter than its predecessor, the 2A42, and it is completely sealed, so that no gunpowder fumes escape the receiver and enter the fighting compartment. This autocannon, when mounted on the BMP-3, has inherently superior shot groupings in fully automatic mode compared to an independently mounted one (such as on the BTR-82A, for example), due to a support sleeve at the muzzle end of the barrel, which in turn is attached to the 100mm cannon's barrel. Oversized rings on the barrel act as guides to stabilize the autocannon as it recoils within the support sleeve. Thanks to the support sleeve, the barrel barely oscillates, if at all. This is a major contributing factor to achieving an acceptable accuracy standard (when firing at low rates of fire, at least) despite the light weight of the barrel and the nature of the long-recoil action, which traditionally does not lend itself to good accuracy.


The comparatively low rate of fire and extensive recoil dampening system of the 2A72 eliminates one of the known issues of the BMP-2, which is related to the eccentric mounting of the cannon. Because the cannon was mounted off-center in the BMP-2's turret, recoil forces would torque the turret, causing it to inadvertently rotate slightly and push the autocannon off target. This was even worse in the BMD-2, whose turret was so light that if the 2A42 cannon was fired on full auto, the turret would literally slew several degrees off to the right from the sheer force of recoil. This phenomenon was much less serious with the BMP-2 due to its heavier turret, and a burst long enough to shift the turret enough to affect accuracy would be a burst that was long enough to put so many rounds downrange that accuracy became less of an issue, anyway. But back to the 2A72;

Since the gunner can use trigger discipline to fire slower at will, the 2A72 possesses a significant advantage to other slow-firing autocannons of the same caliber - If pin-point accuracy is needed, all that is necessary is to fire fewer rounds with more time in between each shot. A quick trigger finger on semi-auto guarantees workable accuracy if firing on full-auto is not appropriate for the task.


Loading the first round, or clearing a misfired round from the breech of the 2A72 can be done manually or with a pyrotechnic charge in the case of a misfire.


The ammunition storage comprises of two separate compartments, each dedicated to a specific type of shell. The right compartment, which is located under the commander's seat, houses AP shells, whereas the left compartment, which is located under the gunner's seat, houses HE shells.

The autocannon is provided with 500 ready-to-use rounds, split between 305 HE-I and HEF-T rounds and 195 AP rounds in separate belts. It fires 3UOF8 HE-I or 3UOR6 HEF-T rounds, and 3UBR6 AP or 3UBR8 APDS. Maximum range of effective range of fire is 4000m against aerial targets, 2000m against area targets or personnel, and 1500m against light armour, but actual practicality is somewhat different, as you would expect. An interesting fact is that 3UOF8 and 3UOR6 rounds are loaded in a ratio of 4:1 respectively.


BMP-3 gunners are primarily trained to engage light armour with the autocannon, and bunkers and fortifications with the 100mm cannon, and personnel in open spaces with the autocannon. In practice, aerial targets are always engaged with the autocannon. With this in mind, the roles of both weapons are quite ambiguous, as there are exercises where the gunner must engage area targets (representing groups of soldiers) and light armour with the 100mm cannon. Ultimately, which weapon and which type of munition is used against what target is determined by the commander. If certain targets are too tough to crack with the autocannon, the ever-present 100mm cannon may offer a pleasing alternative option.

From left to right; HEF-I, HEF-T, AP-T, APDS

During a "free range" firing accuracy test for the UAE trials in 1991, the 2A72 autocannon (firing an unknown round, but probably AP or HE) displayed a high efficiency (or so they say). Out of 18 oil barrels acting as targets, 15 were hit. It is not known at what range these shots occurred, and how many rounds were needed per barrel, but it is assumed that it was more than a few hundred meters' distance, or else the test would be a rather unproductive one. In a consecutive test, the autocannon displayed a high degree of accuracy at a range of 2600m, probably against area targets, on the same day. Again, the criteria for what is considered "high" should be understood first, but I do not know what the criteria was.



30MM AMMUNITION


The 2A72 autocannon uses 30x165mm cartridges. The propellant charge used for all shell types is designated as the 6/7P-5BPfl, a type of high-energy stick powder.


(3UOF8 HEI)




High-explosive incendiary shell intended for the destruction and neutralization of enemy combatants, helicopters, thin-skinned utility vehicles, light fortifications, and main battle tanks. In some cases, these shells may prove more potent than armour-piercing shells against heavily armoured targets since they are able to effectively able to damage and destroy sighting systems and other important components including periscopes, guns, tracks and fuel tanks. The destruction of these may already affirm the end of whatever mission the vehicle in question was on, without destroying the vehicle in question.

The A-670M nose fuze is used. It will self-destruct after the shell has travelled approximately 4000m or so, depending on the strength of head and tail winds.

Cartridge weight: 842 g
Projectile weight: 390 g

Muzzle velocity: 960m/s
Guaranteed Kill area: 5.95sq.m (Blast and fragmentation)
Lethal radius: ~5m (Fragmentation)
Casualty radius: ~12m

Explosive mass: 49 g
Explosive filling: A-IX-2 (Phlegmatized RDX + Aluminium filings) (Aluminium is pyrophoric. Detonation produces incendiary effects, increasing the chance of igniting or burning objects in its proximity)

Compared to the 3UOR6, this shell is more useful when dealing with obstructions like walls and sandbag fortifications due to its much higher explosive power. It is also far more effective against personnel, thanks to the mass of the projectile and the number of splinters it produces. If compared to the American 25mm M792, the 3OF8 projectile weighs 2.1 times more, and it contains 1.53 times more explosives, despite a seemingly small increase of only 5mm, or 20% in diameter. 3UOF8 is in fact nominally more powerful than both the British 30x170mm HEI-SD, which weighs in at 360g with a 40g explosive charge, and the American 30x173mm Mk266, which weighs 362g.

Without a doubt, 3UOF8 can reliably guarantee the destruction of armoured attack helicopters thanks to its large explosive punch, which 20mm, 23mm and 25mm shells lack. In addition to that fact, although each shell has a relatively small lethal radius, their effect is massively amplified by multiple consecutive shells detonating in the same general area. The intersection and reflection of these blast waves can create a cumulative "kill zone" where internal cavities like the lungs, ear drums, intestines and stomach will be reduced to hemorrhaging masses, thereby killing someone that is outside of the nominal lethal radius of a shell, but standing between two or more of them. It's worth noting that this phenomenon can only be achieved with quick follow-up detonations, which the 2A72 is perfectly capable of with its relatively high rate of fire - an accomplishment that the British RARDEN and the American Mk44 simply cannot challenge.

This shell is always loaded in tandem with the 3UOR6, since it lacks a tracer element.


3UOR6 (HEI-T)




Tracered high-explosive incendiary fragmentation shell intended for engaging personnel in the open and behind cover. Small explosive charge makes this shell generally unsuitable against the targets which the 3OF8 is used against, deferring the brunt of the work to it instead. To compensate for the lack of explosive power, the shell relies mainly on the fragments it produces.

The A-670M nose fuze is used. It will self-destruct after the shell has travelled approximately 4000m or so, depending on the strength of head and tail winds.


Cartridge weight: 835 g
Projectile weight: 388 g

Muzzle velocity: 960m/s
Guaranteed Kill area: 1.4sq.m (Blast and fragmentation)
Lethal radius: ~3m (Fragmentation)
Casualty radius: ~12m

Explosive mass: 11.5 g
Explosive filling: A-IX-2 (Phlegmatized RDX + Aluminium filings) (Aluminium is pyrophoric. Detonation produces incendiary effects, increasing the chance of igniting or burning objects in its proximity)

Tracer burn time: >9 seconds


Although this shell has a mere 23% the amount of explosives contained in the 3OF8, it is encased with around the same mass of steel, which adequately compensates for that fact as far as fragmentation effects go. Since a sizeable portion of the shell's mass is composed of the tracer element, the 3UOR6 shell tends to undershoot the constant-mass 3OF8. This is especially noticeable at longer distances.

This shell is always loaded in tandem with the 3UOF8, being its tracered counterpart.


 3UBR6 (AP-T)



Armour-piercing shell for the sole purpose of engaging armoured targets. This shell can be depended upon when engaging most IFVs and APCs, but not examples of the current generation. It is also capable of disabling some main battle tanks when attacking from the flanks or the rear. From a technological standpoint, it is equivalent to APBC shells for the anti-tank guns of the WW2 era and before. This is actually quite convenient for us, because we know the main parameters of the shell, so we can easily find out its armour penetration using Peter Samsonov's penetration calculator with good accuracy (link).


Cartridge mass: 856 g
Projectile mass: 400 g

Muzzle velocity: 970 m/s
Core: High-hardness tool steel (60KhNM ?), blunt tip

Penetration, RHA (60 degrees):
700m = 20mm
1500m = 16mm

(Official values)

Penetration, RHA (0 degrees)
0m = 48mm (Calculated)
700m = 43mm (Calculated)
1500m = 39mm (Calculated)

(Surmised values)

Tracer burn time: >3.5 seconds


Due to its mediocre properties, its performance on light armour is rather modest, although it is certain that it is fully capable of perforating the armour of lightly armoured APCs such as the American M113, German Luchs, French VAB, or perhaps the generally light armour of scout cars and other armoured cars, while some modern vehicles like the Stryker and LAV III still prove totally vulnerable, being no better armoured than their tracked peers from the 60's and 70's. It is capable of defeating older IFVs like the Marder 1A2 and M2A1 Bradley from the front at ranges in excess of 1500m, but against the latest IFVs or IFVs specifically uparmoured afainst it like the M2A3 Bradley and Puma, the 3UBR6 shell is, for the most part, less useful than HEI shells.

It quite interesting to note that this shell should be able to perforate the side armour of some tanks of its time, particularly at close ranges. The AMX 30, Leopard 1 and Chieftain are three such unfortunate examples. Legacy tanks like the Centurion are highly vulnerable as well.

Another interesting fact is that this shell is not insignificantly affected by steeply angled armour due to its full-bore steel construction. This is demonstrably proven by their tendency to ricochet when striking armour at low angles of attack, despite the blunt-but-vaguely-pointy nose, and despite overmatching thinner plates due to its large diameter. As such, it is inferred that their performance on flat targets is significantly higher than on angled ones. This was duly expressed in the penetration listings above.




3UBR8 (APDS-T)



Greatly improved armour-piercing shell with a plastic discarding sabot with an aluminium plug, providing more opportunities to destroy armoured targets. Its properties are superior to the 3BR6 by a wide margin in all respects, including accuracy. A higher velocity and superior ballistic coefficient also enables the subcaliber tungsten alloy penetrator to travel with a flatter trajectory and to retain more of its energy at extended distances.

Cartridge weight: 765 g
Projectile weight: 304 g
Core weight: 222g

Muzzle velocity: 1120m/s
Core: Tungsten alloy
Penetration, RHA (60 degrees):
1000m = 35mm
1500m = 25mm
2000m = 22mm

(Official values from Rosoboronexport and Kurganmashzavod)

Penetration, RHA (0 degrees):
Muzzle = 85mm (?)
500m   = 80mm (?)
1000m = >70mm
1500m = >50mm
2000m = >44mm

(Surmised values)

Tracer burn time: >1.5 seconds


Externally, the 3BR8 projectile is quite similar to the German 20x139mm DM63 APDS projectile. The 3UBR8 shell is capable of defeating most modern IFVs, but with varying effectiveness. Older IFVs like the M2A2 Bradley, Warrior, Marder 1A3, and the like can be eliminated at combat ranges - which is up to 1000m and beyond. Newer models like the CV90 series and Puma are most likely fully immune and would require shots from the 100mm gun to destroy.

Although this shell travels at only 83.2% the velocity of its main counterpart (the M791), its core weighs 2.3 times more. Not only does this mean that the 3BR8 penetrator has twice the amount of kinetic energy. Not only does this mean more penetration if all other variables are uniform, but that the 3BR8 penetrator will produce more fragments post-penetration given the same thickness of target armour.



Rosoboronexport claims that the 3BR8 shell can penetrate 25mm RHA angled at 60 degrees at 1500m while ATK claims that the M791 penetrates the same thickness of armour at 1300m. Knowing that the standards for certifying armour penetration differ between the East and the West, the discrepancy between the two rivals is actually even bigger. The Russians use V80 when expressing penetration values, which means that the 3BR8 shell will penetrate 25mm RHA angled at 60 degrees at 1500m in 80% of all cases given a certain range of velocities. In contrast to this, the U.S and others use V50. This means that only 50% of all fired M791 shells will actually achieve full armour perforation within a certain range of velocities.


Overall, 3BR8 is on the same technological level as the 25mm Bushmaster M791 APDS and 30mm RARDEN L14 APDS, but none of the three can be considered to be above the rest. All of them have an uncapped tungsten alloy (not tungsten carbide) penetrator in a plastic sabot. This means that they can be easily defeated by hard steel spaced armour, as the uncapped penetrator will shatter upon and after penetrating the hard steel spacing plate, leaving only fragments to pass through and impact the main armour. This is the protection technique employed by both the Marder 1A3 and the BMP-3. 3BR8 is probably incapable of defeating the frontal armour of a Marder 1A3, and M791 and L14 is probably incapable of doing the same for the BMP-3.


Generally speaking, the 3BR8 shell is capable of doing whatever the 3BR6 shell was capable of, but to a greater degree. The increased penetration potential allows gunners to confidently engage a larger collection of main battle tanks from the rear or even the side in some cases. Examples of these may include the Chieftain, Challenger 1, earlier Leopard 2s and the M60 series. Although repeat shots could again still be necessary, the practical threshold is clearly much higher if compared to the 3BR6. Unsurprisingly, being a great deal more accurate and powerful, it has been gradually replacing the obsolete 3UBR6 since the late 80's, although the latter is still being widely used in training and live fire exercises due to lower cost.











The combat value of the 2A72 autocannon has come into question with the implementation of the 100mm 2A70 gun, which is able to supplant the the autocannon in literally all of its roles, though the 2A72 still proves useful in engaging helicopters and light armour. On the other hand, the FCS of the BMP-3 is advanced enough to allow the 2A70 cannon to engage helicopters and fast-moving ground vehicles as well, which has sparked a debate as to the autocannon's usefulness.

The 2A72 was obviously not intended purely for anti-armour purposes, unlike the 30mm RARDEN, which, according to Jane's, was designed with an anti-armour philosophy with the emphasis on high accuracy as opposed to high rates of fire. The 2A72 is accurate enough on short bursts, but its main attraction is its light weight and high rate of fire. Therefore, it can be considered a lighter version of the 2A42, intended for light vehicles. The 2A42 is heavier, more accurate and faster firing, and is still the go-to autocannon for the Russian ground forces, as proven by its inclusion in the Bumerang, Kurganets and T-15 Armata platforms.


In any case, it is probably not incorrect to assume that gunners like the added firepower anyway.



PRIMARY






The 2A70 100mm low pressure rifled cannon can fire both HEF shells and guided anti-tank missiles. It is a rather unusual choice of armament for an IFV for its large caliber and low pressure. It's size and mass of 332kg offsets the 2A72's lightness, bringing with it a balance of sorts.

It is loaded automatically from an electromechanical autoloader (which loads HEF shells only) which is fed from a conveyor on the turret floor. It may be operated manually by the gunner, but only in emergency situations. A normal loading cycle takes 4 to 5 seconds to complete, putting the maximum rate of fire for HEF shells at 12 to 15 rounds per minute. However, the practical rate of fire, as dictated by the gunner, is around 10 rounds per minute depending on the number of available targets. ATGMs need to be loaded manually by the gunner, which is a rather clumsy procedure due to the length of each missile. To help the gunner, the mechanical rammer of the autoloader will assist. Only one ATGM may be airborne at any one time, and the ATGM that is in-flight must reach its target before a fresh missile can be fired. As such, the maximum rate of fire depends on the gunner, but on average is never more than 4 shots per minute. The practical rate of fire is 2 to 3 shots per minute.


Ready-to-use 100mm HEF rounds are located on the turret floor. Note the radially arranged slots in the carousel for 100mm ammunition. The autocannon ammunition is stored in two half-moon compartments just above the 100mm rounds, which is now being used by the trainee gunner as a convenient footrest.

Either the 3UOF17 and 3UOF19 or 3UOF19-1 HEF rounds can be used in the baseline BMP-3, but they significantly differ from each other. The 3UOF17 round is heavier, and has a larger explosive filling but with a less dense fragmentation lining.This round has a maximum effective range of 4000m. The 3UOF19 improved fragmentation round, on the other hand, weighs less but generates 1.7 times more fragments and has a stated casualty area 2.53 times that of the 3UOF17. The newer shells have a maximum effective range of 6500m to 7000m. Both these rounds use 3B35 impact fuses.

The 3UOF19-1 shell is a proximity-fused variant of the 3UOF19. It is an airbursting shell, exploding 3m, give or take 1.5m, above ground level, producing a casualty area 1.7 times that of the 3UOF19. Creatively using proximity fuses instead of lasing and programming electronic fuses as with other air-burst shells significantly reduces the time needed to acquire and engage a target and is a wise choice as the BMP-3 may fire at targets with the same firing procedure as normally fused shells but with the effect of air-burst shells. Both the improved shells also have a 25% higher accuracy when compared to the 3UOF17, due to the increased velocity (250m/s to 355m/s). The 3UOF19-1 shell uses the 9E154 proximity fuse.

The 3UOF17 shell has a 15.6kg warhead, the 3UOF19 and 3UOF19-1 have 13.41kg and 13.31kg warheads respectively. The casualty areas (50% chance of injury or death) are 160sq.m, 360sq.m, and 600sq.m for each respective shell, in that order. Depending on the angle of incidence with the ground, the all three shells may either produce fragments in a butterfly pattern (in direct fire), or radially (in indirect fire). In the direct fire mode, most of the fragments are wasted because they launched into the ground and into the sky, and not into targets on ground level. Indirect fire is more efficient, because all fragments will be sprayed sideways and into targets on ground level.


Although all the HEF shells are primarily intended for the anti-personnel role, they are also extremely efficient in dealing with lightly-armoured vehicles:

The explosion was powerful enough to lift up the BTR-70 husk


This gives the BMP-3 the ability to kill vehicles such as BTRs, M113s, BMPs, Strykers, and the like within the first shot, and severely damage and achieve a mission kill on even the latest and most heavily armoured APCs like the Patria or Boxer. The cannon is also very accurate despite firing low velocity shells. The video below, also taken from the Kurganmashzavod website, shows this. Firing on a target at a distance of 1650 meters while on the move, using the AST-B target tracking system on the Vesna-K, the cannon scored a hit right in the middle of the target. As you may recall, the BMP-3 still retains the 1V539 digital ballistic computer even when it has the Vesna-K installed.





100mm shells may also be used in the anti-aircraft role, but only opportunistically. The target leading system is compatible with 100mm shells, so they may be used to engage even moving targets, but the inherent inaccuracy of these shells mean that they are only useful at impractically close ranges in the vicinity of 1000 meters. The use of 3OF19-1 proximity fused ammunition totally reverses this situation, making the BMP-3 exceptionally lethal to low flying aircraft.


AUTOLOADER



The 2A70 is provided with 22 ready-to-use HEF rounds stowed on the turret floor conveyor, and an additional 18 rounds stowed in an ammunition rack behind the turret just under the 3 rearmost passenger seats, which can be folded up.





Spent shell casings are ejected through a small rectangular hatch on the rear of the turret. The propellant is quite smoky, discarding the casing immediately after firing significantly reduces the volume of fumes that stay in the turret, both because the residue inside the casing is a minor source of the fumes and because the opening of the ejection port momentarily helps to evacuate the fumes.






100MM AMMUNITION


3UOF17

3OF32




The first 100mm round available to the original BMP-3. The cartridge includes a 3OF32 HE-Frag shell directly transplanted from the 100mm 3UOF11 cartridge, which was used in the D-10T cannon on the T-54 series of tanks beginning from 1970's. As such, the BMP-3 can be said to possess "the firepower of a tank", in some ways.


Muzzle velocity: 250m/s
Firing range: 4000m (Direct)
Maximum firing distance: 8000m (Indirect)

Chamber Pressure:
At 15 degrees Ambient Temperature: 1870 kgf/sq.cm
At 50 degrees Ambient Temperature: 2200 kgf/sq.cm

Fuze: 3B35 Impact Fuze


Complete round mass: 18.1kg
Shell mass: 15.6kg
Explosive mass: 1.7kg

Number of Preformed Fragments and Their Mass:
With a mass of not less than 0.5 g: 1993
With a mass of 0.5 g to 2 g: 814
With a mass of 2 g to 15 g: 928
With a mass exceeding 15 g: 251

Statistical Average Mass of Fragmentation: 6.2 g


Velocity of Fragments and Ratio of Fragment Velocities:
100% - 1040 m/s
90% - 1060 m/s
80% - 1080 m/s


Lethal area: 160m.sq
Lethal pressure: 10kgf/cm.sq





This is the most effective shell "punch-wise", due to its substantial mass, making it most effective against light armour. However, the design of the shell body, especially the tail, does not produce an optimal fragmentation pattern, and the ratio of explosive charge to steel body mass (0.11) is not perfect. This is because of its heritage. As this shell was originally designed to be launched at velocities of over 800 m/s, they were probably not very worried about low velocity characteristics.



3UOF19



Muzzle velocity: 355m/s
Effective firing range: 6500m (Direct)
Maximum firing distance: 8000m (Indirect)
Fuze: 3B35 Impact Fuze
Complete round mass: 15.8kg
Shell mass: 13.41kg

Number of preformed fragments (mass of not less than 0.5g): 3393
Average velocity of fragments: 1420m/s
Average mass of fragments: 2.73g

Lethal area: 360m.sq
Lethal pressure: 10kgf/cm.sq



This shell flies faster than its predecessor (supersonic, too) and has a greatly improved design, enabling it to produce more fragments. It is also more accurate, thanks to its higher velocity and improved tail.


Butterfly fragmentation pattern. N=number of fragments, S=area

3UOF19-1




This shell has an proximity fuse with side-looking optical sensors. The shell is designed to detonate within 3 meters above the ground, greatly increasing its effectiveness against area targets. Thanks to the large casualty area produced by the airbursting effect, it is particularly useful when engaging well-hidden and highly problematic targets such as ATGM teams, whose exact positions may not be known at all. It becomes somewhat useless against IFVs and fully fortified bunkers, however, as the fragments are not nearly heavy enough to defeat even the thinnest (within reason) roof armour. The proximity fuse gives this shell the ability to engage moving aerial targets with exceptionally high lethality.


Muzzle velocity: 355m/s
Firing range: 6500m (Direct)
Maximum firing distance: 8000m (Indirect)
Fuze: 9E154 Proximity Fuze
Complete round mass: 15.7kg
Shell mass: 13.31kg
Detonation altitude: 3m ± 1.5m

Number of preformed fragments (mass of not less than 0.5g): 3393
Average velocity of fragments: 1420m/s
Average mass of fragments: 2.73g

Lethal area: 600m.sq
Lethal pressure: 10kgf/cm.sq



Depending on the exact angle of firing, the shell doesn't always detonate 3 meters from the ground. It depends on the angle of incidence, which changes if the target is nearby or far away. At long distances, the shell may detonate 1.5 meters above the ground, since the side-looking optical sensors cannot see the ground because of the high angle of attack. A short distances, when the shell is essentially flying parallel to the ground, it may detonate at an altitude of 4.5 meters.





Propellant charge (All the above shells use this charge)


ACCURACY



According to results from the BMP-3 trial in Turkmenistan for the UAE, the 3UOF17 shell has an average CEP (circular error probability) of 25m at a range of 4000m, meaning that 50% of fired shells will hit in an area with a circular diameter of 50m at that range. Therefore, 3UOF19/-1 shells should have a CEP of 22.36m at 4000m, though this is probably lower than the real values, as 3OF19 has slightly different aerodynamic characteristics and a higher velocity.

For a low-velocity cannon, the 2A70 can achieve reasonably good results at long distances. Unfortunately, the low velocity nature of the 100mm shells means that they are quite susceptible to being blown off course by crosswinds or blown too far forward or too far back by head and tail winds. This invalidates any attempts to extrapolate the firing accuracy at 4 kilometers' distance to ascertain the firing accuracy at closer distances. Try it. You will find that it should be impossible for the 2A70 to hit a tank-sized target at even a few hundred meters' distance, when all of the evidence points to the opposite. Without much wind, or without prolonged exposure to wind, the accuracy of the 2A70 gun is much better than stated.




ANALYSIS



An important thing to note is that although the 3UOF19/-1 shells can be shot to an absolute maximum of 8000m, the practical range will be limited to 4000m due to target identification range and ballistic computer limitations unless the newer SOZh gunner's sight (replacing the 1K13-2) and 1V539M ballistic computer is installed. Shooting at ranges more than 4000m requires switching to indirect fire mode. Unlike a true gun-mortar system like the Nona-S, the 2A70 cannon does not have access to mortar shells, making it impossible to hit targets at a high angle of attack at short distances. This is because conventional ogived shells like the 3OF32 lack the special shape and fins that enable mortar shells to consistently land always almost vertically like a shuttlecock. This means that the BMP-3 cannot attack the weaker top armour of enemy tanks and IFVs at short distances. It could do that at long range, but the low chance of scoring a hit makes this impractical.


With the 2A70 gun, the BMP-3 is able to engage soft targets more effectively than its autocannon, and engage both soft targets and light armour at greater ranges than possible with a 30mm cannon. The gun may also prove useful against lightly armoured targets that the autocannon cannot destroy, such as the German Puma and uparmoured CV90 IFVs, both of which are heavily armoured and are able to reliably resist 30mm APDS shells. Additionally, the 2A70 gun is much more effective at destroying structures and earth-and-log bunkers, and is much more efficient in dealing with ATGM teams.

Furthermore, as a result of the 2A70's indirect fire capability, the BMP-3 has unique opportunities to engage soft targets as well as lightly armoured vehicles at a variety of ranges, and in situations where air power and artillery support is not available. For instance, a tank could easily hit a target at two kilometers using its high power and high velocity HE-Frag ammunition, but it cannot do this over a tall hill, or over tall buildings. The high velocity of tank gun ammunition and the limited elevation of tank guns means that while it is possible to land a shell on top of a target at long distances, it is not possible at shorter distances. The low velocity of the ammunition fired from the 2A70 enables it to lob payloads across villages, small towns, hills, and other natural obstacles at short ranges to provide fire support for nearby troops, as opposed to troops from the neighbouring division. This feature substantially increases a mechanized division's overall combat effectiveness, and enables the BMP-3 to perform many of the same duties as the Nona-S, but not as extensively, as the Nona-S is inherently more powerful due to its larger caliber and it has access to a much wider variety of munitions. The development of the 2S31 Vena (which uses the BMP-3 hull, no less) aims to endow the ground forces with a Nona-S-like weapon system. Another outstanding feature is the excellent gun elevation, which enables targets in high-rise buildings to be blasted with a level of effectiveness that an autocannon simply cannot match.


It is evident that the popularity of large caliber autocannons in the 40mm to 57mm range is due to the need to accomplish the same tasks. All design choices have to compromise something, and in the case of the 30-100 combination, the compromise is that the anti-armour capabilities of the 30mm autocannon are very limited compared to a 57mm one. In the case of 57mm autocannons, the compromise lays in the limited explosive power of the shell compared to a 100mm solution. However, one could argue that this quandary has already been solved by the use of advanced technology. A programmable fuse can make a 40mm to 57mm HE-Frag shell highly effective against soft targets in the open and in field fortifications by employing an airburst mode, and even give it valuable bunker-busting capabilities by employing a delayed fuse. Another issue is that direct fire is more rapid and responsive than indirect fire, but the lack of indirect fire capability means that an autocannon-only IFV is perpetually at risk of return fire, usually from hidden ATGM teams. At least the BMP-3 has the option of engaging such dangerous targets at equally long range from the safety of terrain features.




ATGM



The 2K23 armament system includes the 9M116-3 Bastion 100mm ATGM launching system. It employs laser beam-riding guidance, which is essentially unjammable. The two ATGMs available for the BMP-3 are the 3UBK10M-3 Basnya cartridge with the 9M117-3 Basnya missile and the 3UBK23-3 Arkan cartridge with the 9M117M1 Arkan missile.

The 3UBK10M-3 is the designation for the complete Basnya missile cartridge, and it is the older of the two available missiles. It has a single warhead and a maximum range of 4000m. It was essentially outdated the moment it was introduced, as the special armour employed on NATO tanks at the time practically ensured their immunity to single shaped charge warheads of this caliber. Based on recent data on the performance of Abrams and Leopard 2 tanks in Syria, it can be surmised that Basnya would have been effective against earlier models (M1 to M1A1, and 2A0 to 2A4) of the aforementioned tanks in side engagements, but only in side engagements. Proliferation of this missile is unknown, but it has probably already been completely phased out in favour of Arkan due to its complete obsolescence.

The BMP-3 can accurately fire and guide missiles while on the move at speeds of up to 25km/h. The missiles are soft-launched out of the gun barrel, whereby the rocket motor activates and sustains a transonic speed (~330 m/s) until detonation. All missiles have a guaranteed hit rate of 80% at their maximum ranges.

Both the Basnya and the Arkan missiles have a laser beam receiver at the rear. It is not known if both of them use the same model, but it is probable.


Laser beam receiver "window"


Basnya


The Basyna missile has a single-charge warhead. It employs a hemispherical wave-shaper, which improves the integrity of the cumulative jet by focusing the main charge's explosive power more efficiently.

The missile uses the 9E256 point-detonating, graze-sensitive fuse.


Basnya

Explosive Charge: OKFOL

Warhead Cone material: Copper
Warhead Cone diameter: 96mm

Standoff: 250mm (2.6CD)

Penetration: 550mm RHA


Arkan





The 9M117M1 Arkan missile has a tandem warhead and is better suited for defeating composite armour. It might be possible for Arkan to defeat the front turret armour of the M1 and the front hull armour of the M1A1 Abrams and the Leopard 2, but it is only thanks to the tandem warhead. However, despite Arkan being a relatively new missile, its potential is greatly hamstrung by its diminutive caliber. Arkan is currently useful against the side profile of modern tanks and against modern IFVs protected by ERA, such as the BUSK package for the Bradley M2A2/A3.



Explosive Charge: OKFOL

Primary charge diameter: 96mm
Material: Copper

Primary Warhead Penetration (without precurser/after reactive armour): 650mm RHA (?)
Primary Charge Penetration (after precurser/without reactive armour):750mm RHA

Precurser Charge Diameter: 47mm

Primary Warhead Cone Internal Angle: 60°



9M117M1 Arkan missile (top) and 3UBK23-3 cartridge with Arkan missile plus propelling charge (bottom)


Both Basnya and Arkan will fly at least 3.5 m over the ground, give or take 0.35 m, and descend to target level immediately before contact. This is primarily to keep the gunner's line of sight to the target clear, but it also helps minimize the possibility of the missile colliding with bushes or other terrain features, which may disturb the missile's flight or even prematurely detonate it. It also gives the BMP-3 some ability to engage targets in hull or even turret defilade, since the missile is guaranteed to fly over whatever cover the target is hiding behind.

In a basic BMP-3, the missiles must be manually loaded by the gunner. Three missiles are stored vertically in a rack on the rear of the turret, easily accessible to the gunner. Five more are stored in a storage rack on the port side of the vehicle hull. In practice, the turret racks are replenished from these hull racks by a passenger, although the gunner can reach them as well. Needless to say, the abundance of ammunition stowed in the open is troubling, though it is by no means unique to the BMP-3.


Here, the five ATGM storage racks are visible, and one of the side firing ports.


An autoloader is available for retrofitting. It pulls ATGMs directly from the rack of three and rams them into the cannon, which is automatically elevated beforehand. Because the sight is independently stabilized, this leaves the gunner free to search for targets. Loading takes around 9 seconds, according to a demonstration video from the Kurganmashzavod website. It is possible that the rammer was deliberately slowed down for demonstration, which was also done in a separate video for the autoloader on the Bakcha-U turret.





PKTM




The co-axial PKTM machine gun is sighted with the 1K13-2 or SOZH gunner's sight. The PKTM is distinguished from the earlier PKT by the cone-shaped booster on the muzzle, replacing the flash hider of the PKT. The mounting trunnion is also modified. Ball and tracer ammunition are usually linked in a 4:1 ratio. The machine gun has a rate of fire of 700 to 800 rounds per minute. A 250-round box of 7.62x54mmR ammunition is provided in a continuous belt. The co-axial machine gun can be fired either by depressing the trigger button on the gunner's handgrips, or by tugging at the manual trigger lever located just behind the disassembly button on the receiver of the machine gun.






Aside from the main armament and the co-axial machine gun, the BMP-3 also mounts two PKTM bow machine guns, each with 2000 rounds in a continuous belt. The machine guns are aimed through a single TNPZVE01-01 periscope-aiming device which has a collimator reticle projected on the viewing aperture through a fiber optic cable. The periscope itself thus becomes a gunsight, with a moving luminous reticle which moves as the PKT moves (like a video game!).




The periscope has a field of vision of 17.5 degrees in the horizontal plane and 10 degrees in the vertical plane. It has a magnification of 1x.


Bow machine gun with manipulator arm and thumb trigger in view. Notice the fiber optic cable (sheathed in flexible black rubber tube) connecting the machine gun trunnion to the rear part of the periscope
In this video still, we see the driver from the port bow machine gunner's perspective. The bow machine gun's large 2000-round ammo box is clearly visible.

Bow machine gun without rubber slip-on

The machine guns are mounted in ball mounts and can be elevated by 15 degrees and depressed by 5 degrees. They can be swiveled 5 degrees inwards and 30 degrees outward, horizontally. The bow machine guns have an average maximum practical range of 600m, but much, much less if the vehicle is on the move over rough terrain. As far as bow machine guns go, this is as good as it gets. The TNPZVE01-01 periscope combines the good visibility of a periscope with the higher accuracy of an aiming device. Here, I would like to use the Sherman and T-34 as examples. The Sherman's bow machine gunner had an adjustable periscope to see the outside world, but no way to aim his machine gun. What he must do is fire in the general direction of the enemy, and adjust according to the tracers. In the T-34, the bow machine gunner has no periscope, but there is a small hole in the bow machine gun turret for him to look through the sights of his DT machine gun. This meant that he had an incredibly bad case of tunnel vision, but if he could see his target, he could make his shots count. The bow machine gunner concept in the BMP-3 takes the best of both and leaves all of the negatives behind. However, this does not mean that having bow machine guns are still viable in this day and age. But if you wanted bow machine guns, this is the way to do it.


Interestingly, the driver can remotely fire the two bow machine guns. He has two button-triggers in thumb's reach on the steering bar, but he cannot aim the machine guns. This feature enables the driver to suppress enemy troops in front of him without the assistance of the crew in the fighting compartment, though the bow machine guns are still of questionable value. In fact, this is probably far more practical for self-defence, rather than to have dismounts operating them. Dismounted infantry can give more protection to a vehicle when outside it, rather than inside it. It's more a case of not letting the machine guns go to waste once the bow machine gunners have vacated the vehicle.


Aside from the bow machine guns, there are firing ports on either side of the vehicle - two on the port side and one on the starboard side, with a maximum 30 degrees horizontal swivel each. The ports may fit either AKs or PK machine guns, through the installation of adaptors which conform to the barrels to fit them in a universal slot in the ball turret. The occupants are provided with a TNPZVE01-01 periscope-aiming device just like the bow machine gunners.

One of two portside firing ports, interior view

Firing port lid, opened. Notice that the recess is facing forward.

Firing port lid, closed

  There is an aft firing port as well, located on the left rear hatch. A soldier must lie down over the engine deck cover to operate his rifle for this firing port. This firing port does not use a periscope for aiming. The soldier must aim through a transparent window.

Rear firing port


Passenger periscopes


The firing ports are intended to allow the passengers to suppress or neutralize threats like ATGM teams or scattered infantry while on the move, which will almost certainly be encountered if a breakthrough is achieved. The firing ports also help maximize the BMP's combat potential if the environment outside the vehicle is simply too hazardous, which was a perfectly possible scenario taking into account the commonness of tactical nuclear artillery shells. With the firing ports, the passengers can still contribute to the fight.

  Regardless, the practicality of firing ports has been called into question in the modern age. Without the serious threat of nuclear war looming over us, it may seem to some that they are no longer necessary. Despite being primarily rooted in offensive tactics, the implementation of the firing ports gives the BMP-3 the critical ability to defend itself from deadly rocket grenade attacks from all directions, even at the rear. This is in contrast to "modern" designs which leave the flanks and rear completely vulnerable to ambushing RPG-wielding agents, leaving the burden of mutual protection to accompanying assets. The firing ports will, without a doubt, prove useful in the hairiest of situations. But then again, the likelyhood of being in a situation where the firing ports become useful are so slim that in many cases, it's not worth compromising the protection scheme.

Loading all ammunition in the BMP-3, including 100mm, 30mm, and 7.62mm ammunition, takes an average of 45 minutes with the participation of only the entire 3-man crew. The 100mm ammunition is loaded by reversing the gun loading procedure, the 30mm ammunition is loaded by inserting belts of it into a small hatch at the front of the vehicle, the missiles are secured on storage racks manually, and the co-axial machine gun ammunition is loaded manually in the turret.

30mm ammunition loading procedure (note the weld lines indicating the thickness of the turret; at least a good two inches)


In the course of the early testing phases of the BMP-3, several components were found to be particularly unreliable, among them were the main weapons. Nevertheless, these issues were solved soon (before March 1988). Of particular interest is the 2A70 gun, which had a failure rate of 1.5 malfunctions per 1000 rounds fired, which was reduced to 1.3, then to 1.12. The 2A72 gun, with a failure rate of 1 failure per 1000 rounds fired, was reduced to 0.62, then to 0.5. The issues were entirely related to the loading mechanisms. The cannons themselves were extremely reliable.



Testimony


During seaworthiness testing of the BMP-3 in 1985 off the coast of Sevastopol, the BMP-3 demonstrated the ability to fire accurately while afloat. With a T-55 (which was pulled out of storage) as a target, the 30mm autocannon, firing HE shells, managed to completely destroy all exterior sighting systems from a distance of 1500m. When fired at with the 100mm HEF shells (unknown number of shots), close inspection revealed that the 100mm gun of the T-55 was broken in four places, and the hull front plate had visible external fractures, with cracks appearing in several places.

Such a demonstration provides a good justification for the belief that a 100mm HEF round would be absolutely lethal even to most of the late Cold War era IFVs, which have far less protection than a tank. KBP of Tula (the manufacturers of the 2A70 gun and its ammunition) seems to think so too. In a promo video showcasing the BMP-3M, they state that the 100mm HEF shell fired from a BMP-3 could destroy a lightly armoured vehicle with great certainty with the first shot, or with an absolute guarantee on the second shot.


Live-fire exercises confirmed the high precision characteristics of the BMP-3's armament system with regards to long range area targets. For instance, it was proven that 70% of shells will land in an area of 60x30 meters, simulating an imaginary enemy platoon, from a distance of 3500m. It was revealed in such exercises that the training of BMP-3 gunners did not correspond to the true potential of the armament of the BMP-3. For the full realization of the potential of the IFV during target practice, it was proposed to increase the range at which gunners had to hit targets by an additional 1800m-2500m during 2A70 gun practice, and 1500m-2000m during 2A72 autocannon practice. A new platoon firing exercise was also formulated whereby BMP-3 gunners had to fire at targets from 3000-3500m. The decision to do so was probably taken in the mid 90's.

This is a good indication that the potential of the 2K23 armament system is not being ignored. With the ammunition improvement in the form of new 100mm HEF shells with increased range, it is more likely than not that BMP-3 gunners are now thoroughly trained to engage targets at very long distances. In fact, it is probably safe to say that the engagement envelope in which BMP-3 gunners are trained for is larger than that of any other IFV crew in the world.



Purpose of 100mm gun


There is some confusion as to the intended purpose of the 100mm gun, as it occupies the same niche that the 30mm autocannon already does, which is the anti-personnel role. This is further evidenced by the fact that the BMP-3 still carries more 30mm HE shells than 30mm APDS shells, despite having much more effective 100mm HEF shells in its inventory. However, it should not be forgotten that 30mm shells have a far higher velocity than the 100mm ones, so they are more suitable for engaging moving targets, and aerial targets. It is worthy to note that the ballistic characteristics of the 100mm shells do not prevent them from being used for anti-aircraft purposes. Its ballistics are fully accounted for by the PPB-2 and 1PZ-10 sights when engaging aerial targets. They are not used thusly in gunnery training, as far as I know, but it is possible.

In the end, it is evident that the designers never intended the 30mm autocannon to be used as the BMP-3's primary anti-personnel weapon, as the 2A72 autocannon does not have the option for the same 550 rounds-per-minute rate of fire which the 2A42 autocannon has. The higher rate of fire of the 2A42 allows it to saturate an area target, while the 2A72 cannot do so quite as effectively, relegating that task to the heavy hitting 2A70 gun.



PROTECTION




The armour of the BMP-3 is arguably the best out of all IFVs in its weight class and perhaps even beyond it. It should be noted that during the selection process for the successor to the BMP-2, the existence of American 25mm APDS ammunition was acknowledged as a crucial factor. In fact, it directly led to Kurganmashzavod suggesting to base the new IFV on the light tank chassis of Obyekt 685. Overall, the argon-welded aluminium hull of the vehicle provides guaranteed protection from ground-level 155mm shell splinters and small arms fire, which is a definitive trait of nearly all vehicles of the type, but frontally, the BMP-3 is well above the rest. Early BMP-3s are often observed with a smooth hull roof. Later on, bolt-on hard high hardness steel applique armour was attached to the roof to augment protection from overhead artillery splinters and other airburst munitions.

The aluminium used for the BMP-3 is ABT-102 alloy. According to several research papers written on the subject, the effectiveness of aluminium armour may reach up to 50% of steel. Previously, ABT-101 was used for light IFVs like the BMD-1 and BMD-2. A research paper by NII Stali has indicated that the thickness efficiency of this alloy can reach up to 45% of steel. The improved ABT-102 alloy should have a better thickness efficiency.

The steel used in the spaced and applique armour over the front of the vehicle is reportedly BT-70Sh. It is a high hardness steel with a hardness of 534 BHN and a maximum strength of around 1900 to 2000 MPa.

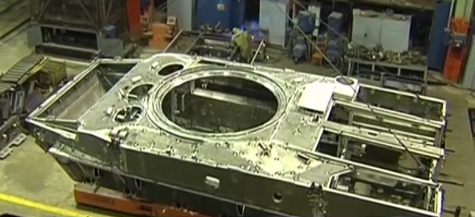

A BMP-3 hull on the Kurganmashzavod production line

The BMP-3 employs aluminium armour in the hull, augmented with a spaced hard steel wave breaker, backed by a specially designed fuel tank which also acts as armour. The baseline BMP-3 is claimed to have sufficient armour to resist 30mm shells frontally from a distance of 200m. It is assumed that these "30mm shells" are 3UBR6 steel APBC shells, but APDS rounds can be defeated as well, as will be explained later. Overall, the aluminium construction of the BMP-3 gives it 1.7 times better weight-protection efficiency compared to the BMP-2 and BMP-1. The armour thickness values are taken from Andrei Tarasenko's site (link).



1. Upper glacis, 18mm of ABT-102
2. Side cheeks, 60mm of ABT-102
3. Turret shields, 16mm BT-70Sh, 70mm air space, 50mm ABT-102
4. Turret roof, 18mm of ABT-102
5. Turret rear, 43mm of ABT-102
6. Rear hatch, 15mm of ABT-102
7. Rear sponsons, 13mm of ABT-102
8. Hull belly, 10mm of AMG-6
9. Upper hull sides, 43mm of ABT-102
10. Underside of sponsons, 15mm of ABT-102
11. Lower hull sides, 43mm of ABT-102
12. Lower hull plate, 10mm BT-70Sh, 70mm air space, 60mm ABT-102
13. Upper hull plate, 10mm BT-70Sh, 70mm air space, 12mm BT-70Sh, 60mm ABT-102


The upper plate armour profile can be described as a 60mm aluminium plate, with a 12mm bolt-on high hardness steel plate, and with a 10mm high hardness steel wave breaker spaced 70mm away from the main armour. All of this is sloped at 30 degrees from the vertical, further increasing the effectiveness of the array. The 12mm bolt-on plate can be seen in the photo below:






The lower plate is the same 60mm of aluminium, except that now, it is sloped at a slightly steeper 43 degrees. There is no wave breaker here, but there is a dozer blade made from the same high hardness, high strength BT-70Sh steel. The dozer blade is spaced from the main armour by 70mm. The additional slope gives further protection from ballistic threats by increasing the likelihood of shattering uncapped penetrators like 3BR6, thus compensating for the lack of a 12mm bolt-on plate.




The fuel tank located immediately behind the frontal hull armour is the main attraction. It gives the BMP-3 the ability to resist 25mm APFSDS shells at a reasonable distance (read: long distance) without increasing its weight, which is quite an achievement for a sub-20-ton IFV. Thanks to the self-sealing nature of the fuel tank, fuel leakage is minimized.


The upper glacis is 18mm of aluminium, plus 3mm of bolted-on high hardness steel. It is sloped at 80 degrees, which is so steep that everything except long rod projectiles will instantly ricochet off. The lower hardness of aluminium compared to hard steel inhibits its ability to effectively deflect heavy metal penetrators, so to do this, it is aided by the hard steel sheets (probably BT-70Sh) bolted to it. The upper glacis should therefore offer the same or better protection as the upper and lower plates, even if it does not have the benefits of the fuel tank behind it.




The turret ring is recessed into the hull and is additionally protected by thick double collars. As such, there is almost no possibility of the turret ring being hit and subsequently being jammed by heavy machine gun fire, or even autocannon fire.




The turret is also fabricated from welded ABT-102 aluminium alloy, rolled into curved plates. The steel shield on the turret's frontal arc is BT-70Sh, but it is thicker than the wave breaker and dozer blade for extra protection. The turret's steel shield renders the turret completely invulnerable against 25mm APDS shells, though without any additional armour beneath the main armour, the turret still has decidedly less protected than the hull. The photo above shows the naked turret, without any steel shields or bolt-on steel sheets on the roof. The photo below shows the steel shields.




The base turret has 50mm of aluminium across its front half, stepping down to 43mm across its rear half. The entire front is sloped at 60 degrees. Altogether, the array should be totally proof against 25mm and 30mm APDS, and it should have no real difficulties resisting 25mm APFSDS from shorter distances than 2 km. Like the front hull, a 30mm cannon with APFSDS ammunition is needed to defeat it.





As you can see in the photo above, the roof is not flat. The forward half is angled at 3 degrees and the rear half is canted back at 5 degrees. This is to increase room for gun depression and also to allow 100mm shell casings to be ejected rearwards.


The rear doors are 43mm thick, as you can see in the photo below. The sponsons on either side of the doors hold the accumulator batteries and coolant for the engine. The rear armour for the sponsons are only 13mm thick.





The side armour is a uniform 43mm across the entire length of the vehicle. The side armour is able to resist armour piercing 7.62mm machine gun fire at all distances from any angle, 12.7mm B-32 AP rounds at 100 meters or less, or .50 caliber M2 AP rounds at ranges of between 300 meters and above - a very reasonable offer. The bulletin on Tarasenko's website states that the 43mm side armour weighs the same as a 15.6mm plate of BT-70Sh high hardness steel. By weight, this would make the side armour identical to the BMP-2, but ABT-102 aluminium alloy has greater thickness efficiency than steel, so the 43mm side armour plate is actually equivalent to 21mm of BT-70Sh. This is a 25% gain in protection for no gain in weight compared to the side armour of the BMP-2.

Angled at up to 70 degrees from the front, the side armour is capable of resisting 25mm APDS shells at 1000m, but not less. This means that the BMP-3 does not have very much maneuvering freedom if engaged by an autocannon since only 40 degrees of its frontal arc is immune, and only at extended distances.





The rear of the turret is as thick as the sides of the hull, but it gains additional protection from its curvature.

The use of very thick aluminium plates (60mm to 43mm) gives excellent rigidity to the hull, thus eliminating the need for stiffening structures.

ABT-102 heat-treated aluminium alloy was originally formulated in the 70's for higher performance against ballistic threats compared to structural aluminium like 5083 alloy (used in the M113) and existing armour-grade aluminium like ABT-101, which is used in the BMD-1 airborne IFV and the BMP-1 in certain parts of the vehicle. ABT-102 is superior to ABT-101, which in turn is slightly superior to 7039 alloy, which is used in some areas of the M2 Bradley IFV. The belly of the BMP-3 is made from AMG-6, which is a structural aluminium alloy similar to 5083 alloy. A comparative graph of 5083 alloy, AMG-6 alloy, 7039 alloy, ABT-101 and ABT-102 can be seen here:




As mentioned before, the wave breaker is made of BT-70Sh high strength steel. Exhaustive armour research has asserted that hard steel works best as applique or spaced armour with softer armour underneath. Such a configuration is known as spaced DHS (Dual Hardness Steel) armour, though in this case, the underlying layer is not a softer steel but aluminium, which is not optimal, but works acceptably. DHS armour is also present in designs such as the uparmoured turret of the Leopard 1 tank. The wave breaker and aluminium hull armour combo is more than enough to completely stop 25mm APDS. As explained before in the section on the 3BR8, M791 APDS has an uncapped tungsten alloy penetrator. Without an armour piercing cap, the penetrator will shatter against the wave breaker, leaving either large fragments or a penetrator of reduced mass and irregular (non-optimum) tip to pass through and impact the main armour, which, in this case, is a 12mm bolt-on hard steel plate. A 30mm APBR shell like the 3BR6 will probably be shattered by the wave breaker and catastrophically fail on the hard steel plate of the main armour, while the tungsten alloy penetrator of an APDS round may still create a dent.

However, it won't be enough to outright stop 25mm APFSDS or similar ammunition of higher calibers - that task is deferred to the fuel tank underneath the hull armour.


But what proof is there for such claims?


See here for penetration capabilities of the relatively new M935A2 25mm APFSDS, developed by MECAR: Link. The tungsten alloy penetrator of the M935A2 has a V50 rating of >30mm RHA at 60 degrees at 2 km. This means that at 2 km, shells will have a 50% chance of achieving full penetration against a 30mm RHA plate sloped at 60 degrees. Long rod penetrators are more effective against sloped plate than against unsloped plate, which means that the penetrator should be able to penetrate slightly less than the LOS thickness of 30mm at 60 degrees at the same distance, if the plate were less sloped. This means that at 2 km, the V50 rating should be slightly less than <60mm RHA.


The depleted uranium M919 APFSDS, standard for modern M2A2 and M2A3 Bradley IFVs, is widely stated to have a penetration of 75mm RHA at 0 degrees at 1 km, 40mm RHA at 60 degrees at 1km and about 31mm RHA at 60 degrees at 2 km.




It is clear, then, that at distances of 2 km and above, a 25mm cannon is simply insufficient for the upper plate, which is why the Strykers deployed in Europe have new 30mm cannons. 25mm APFSDS still can defeat the hull armour at distances of below 2 km, but only by a small margin, and after it passes through the front armour, it must still contend with the self-sealing fuel tank. Therefore, we can assume with a great deal of confidence that the frontal hull is immune to 25mm APFSDS from out to at least 1 km.


Interestingly, the front hull protection may be increased further by simply extending the wave breaker, creating even more spaced distance. Knowing how people often want to live, it is quite likely that this ability will be taken advantage of by the crews in real combat situations. The wave breaker is extended 480mm away when activated.








Additional slat armour and applique spaced side armour may also be installed, as seen here:




The addition of the hard steel spaced panel is most probably intended to immunize the sides against .50 caliber SLAP ammunition. .50 caliber SLAP has very high nominal penetration, but it is not very sophisticated. It is merely a tungsten carbide slug driven at high velocity. It does not have an armour piercing cap or any other buffers. This makes it very easy to defeat by spaced armour, as the strong but brittle tungsten carbide slug will shatter against the spaced plate, leaving only fragments to harmlessly impact the main armour.

New production BMP-3s will probably have this armour installed as standard. Thanks to the high buoyancy characteristics of the BMP-3, the additional weight had only a negligible effect on its swimming abilities. It is still able to travel at around 10 km/h in the water, and the vehicle's top speed remains unchanged to boot, though the change in weight should be somewhat noticeable for the driver. All BMP-3s will be retrofitted with the new armour as part of a low-cost modernization program to maintain fighting capabilities while waiting for sufficient numbers of new generation IFVs to accumulate.


It's worth noting that the slat armour and thin spaced steel panel combination isn't particularly high-tech, and that the BMP-3 could have been given them as an ad-hoc modification by technicians in the field anyway.



FUEL TANK AS ARMOUR




The picture above also shows us the hinges for the glacis, which can be swung open to expose the fuel tanks underneath it. More interesting, however, is that the picture shows us how thick the frontal plate and fuel cell is. We have an excellent view of the placement of bolt-on steel overlays. It is also interesting to see how large the fuel tank is. The fuel tank cap is at the top left corner of the glacis.

The fuel tank is slightly angled from the driver's perspective. This is to allow the steering column, pedals and instrument panels to be fitted properly. The fuel tank is foamed and can store 700 liters of diesel, and is completely self-sealing. The placement of the fuel tanks to the front means that hydrodynamic effects due to the fuel stores will dissipate the energy of cumulative jets from shaped charge warheads as well as defeat kinetic penetrators. As such, even if the main armour is compromised, the penetrating element may not enter the interior compartments. Such configuration allows the frontal armour of the BMP-3 to far exceed that of 25-ton+ foreign counterparts while weighing only 18.7 tons itself (not including 567kg of fuel).

An additional note is that the main armour has no anti-radiation liner, but the rear backing of the fuel tank does, and the backing is not partitioned from the driver. The driver would see the fuel tank if he peers behind his instrument panels. This is a good indication that the designers intended the fuel tank to be used specifically as additional armour, if further proof is required at all.



Since the Soviet campaign in Afghanistan, designers have been increasingly sensitive to mine protection issues, especially in light of the poor performance of BMP-1 and BMP-2 when faced with IEDs. To protect the driver and the two bow machine gunners from mines, the front section of the BMP-3's hull has a double bottom. However, it is not likely that this double bottom can fully protect the driver and bow machine gunners from anti-tank mines with explosive charges exceeding a few kilograms. The rest of the hull is a single 10mm layer of AGM-6 aluminium, as noted before. This is not enough for anything more serious than a regular frag grenade. It might survive if an anti-tank mine detonated underneath the tracks, but that is the best that it can do.

Having mentioned that AGM-6 aluminium alloy is the equivalent of 5083 aluminium alloy, take a look at what happened to this Australian M113 that ran over something big:



According to the excellent afvdb.50megs website hosted by Chris Conners, the M113 has 28.6 mm of hull belly armour. The BMP-3 has better front hull belly armour than that, but the rear doesn't.


All the seats, both for the crew and passengers, are not attached to the floor. Rather, they are mounted to the sides of the hull, in an effort to improve survivability in the event of an underbelly IED blast. One notable exception is the driver's seat, which is still mounted to the floor. This is somewhat countered by the inclusion of integrated shock absorbers and layered foam padding.

However, these measures were still insufficient, as experience in Chechnya showed.



EXPERIENCE IN CHECHNYA


The first combat deployment of the BMP-3 was on the 1st and 2nd of January 1995 in Grozy, on the assault for the Grozny hospital complex. On a column heading for said hospital complex and around the complex itself, a total of 11 BMP-3s were destroyed (ammo detonated) by mines, buried explosive caches and mortar fire. Those same mines also knocked out several tanks. The total figure in the first six months of fighting is quite likely in the range of 20 to 30 vehicles, on the basis of the fact that the vast majority of the 163 destroyed IFVs were undoubtedly BMP-1/2s and BMD-1/2s. Generally, most BMP-3s were destroyed either by mines or by RPG fire. Against such threats, the BMP-3 has no advantages over its predecessors.

The BMP-3 did experience somewhat higher survival rates thanks to the placement of the fuel tank. Even if the armour was perforated by an RPG, it could not set fire to the vehicle, which meant that ammunition could not be detonated without a direct hit to the ammunition, unlike the BMP-1 and BMP-2.

Chechnya proves that the BMP-3 is as backwards as all Soviet era equipment when it comes to asymmetrical warfare. Large mines and IEDs are the largest threat, a threat which the BMP-3 is not designed to handle. The BMP-3 was designed for a European conflict, and if such a conflict were to ignite, it would have been unbeatable, but alas, those days are over.



ARMOUR UPGRADE KIT


There is a composite armour enhancement kit available for the BMP-3, which is mounted over the upper sides of the hull. The degree of protection offered by the kit is unknown, but it should boost the effectiveness of the side profile from 25mm APDS shells at closer ranges. The kit compensates for its own weight by including air pockets in the design, acting both as spacing and as floatation aids. The amphibious qualities of the vehicle are therefore completely unaffected.




Notice the three holes in the armour. Those are not firing ports. Rather, they are just footholds The kit prevents the firing ports from being used.


This BMP-3 is fitted with a Bakhcha-U turret, and more importantly, the side armour kit. (This BMP-3 belonging to Russian Marines)

This kit has been seen in use by UAE BMP-3s, and Russian forces are fielding these in increasing numbers.





Bakhcha-U




The Bakhcha-U turret was originally intended to be equipped on the BMD-3, but has become an option for the BMP-3 as well. The new turret complex includes a new vertical-storage conveyor, new autoloader, and a new sighting system. The new turret is claimed to have superior armour protection, though its exact qualities are unknown. It is composed of a thin sheet steel placed over the main aluminium armour, the thickness of which is unknown. It is at least able to reliably resist .50 Cal SLAP ammunition to the frontal arc, if not more.



The Bakhcha-U turret also includes a new dual-channel gunner's sight and a new commander's panoramic thermal imaging device.




The gunner's new FLIR sight can acquire targets at day or night at ranges of up to 4000m. The automatic target tracking system is sophisticated enough to automatically engage low-flying aircraft without gunner input save for the need for him to press the trigger.

The commander's panoramic sight:





The new 2A70 autoloader carries 34 HE-Frag rounds stored vertically in a carousel. To load, the gun is automatically elevated beforehand, due to a revised ramming system whereby the round is tilted slightly and rammed upwards up a guide channel into the breech.

A total of 500 rounds of autocannon ammunition is carried in steel bins, like with the original turret; 255 rounds of armour-piercing-type ammunition, including AP-T, APDS-T or APFSDS-T. 245 rounds of high-explosive ammunition is carried.

The new autoloader stores 4 ATGMs in a vertical rack behind the commander. To load, a mechanical arm places a missile onto the independent ammunition carousel, which spins a short distance to line up the missile with the cannon breech, whereby it is rammed in. Like with normal HE-Frag shells, the gun must be elevated to load. The amount of time per loading cycle is not known. Although KBP released a promotional video showing the process, the autoloader was deliberately paused multiple times for the demonstration. Without the pauses, it takes just over 3 seconds to load each missile.

The BMP-3 with Bakhcha-U turret passed all tests in 1999. It is not and will never be used with the BMP-3.


ERA



There are at least two known ERA kits available for the BMP-3, which were developed as a direct response to the vehicle's vulnerability to RPGs in Chechnya.


ERA CONFIGURATIONS


Unknown ERA Kit (4S20)

 This is one of three ERA configurations developed for the BMP-3. It was first displayed in early 2001 in Omsk. It employs ERA boxes utilizing 4S20 explosive elements, which are able to protect the host vehicle from rocket strikes of the single-charge warhead variety.

This ERA-protected BMP-3 was developed during the First Chechen conflict where the vehicle proved vulnerable to not only HEAT warhead but also to heavy-caliber machine gun fire to the sides. This ERA package ensures greatly increased protection from single-charge warheads on all sides except the immediate rear, although it cannot by any means provide absolute protection from these shaped-charges.
Interestingly, the ERA-equipped BMP-3 formed the basis for later upgrades. For instance, the bolt-on armour overlays were  in fact first introduced as part of the "improved protection kit" which included the ERA package. The overlays then crossed over and became a standard feature of all BMP-3s. Other features were never implemented, however, such as the beefed-up road wheels (necessary for supporting the increased weight) and applique steel side armour screens, which were necessary for supporting the ERA blocks and consisted of seven sections on each side of the hull. The boxes are completely resistant to both armour piercing and incendiary of the 7.62mm and 12.7 calibres and are also unaffected by burning napalm. The steel side screens also acted as applique armour and granted the side aspect complete immunity from 12.7mm AP and SLAP fire.





 They will be completely destroyed if struck and activated by a shaped charge warhead.
Beautiful!

 In this photo, you can see the turret armour ERA boxes' vulcanized rubber flaps lifted up. The rubber flaps are intended to detonate warheads ahead of the ERA, further increasing their potency.

50 sets of these ERA box-sets were procured by the UAE for testing and evaluation. No details on further acquisition have been reported. Recent videos of UAE operations in Yemen with BMP-3s show that they are not outfitted with ERA.
Each box weighs just 1.37kg, and the explosive charges contained within weigh a total of 0.28kg. There have been concerns that the thin walls of the boxes and the relatively large explosive charge will cause collateral damage to nearby personnel. The concussive effects (more than double of that of an RGD-5 grenade) can cause blast-related injuries to not only dismounted infantry, but also to soldiers within the vehicle. But then again, if an RPG is detonated outside the vehicle, this hardly matters anyway.

The introduction of the newer 4S24 package have made the 4S20 package completely obsolete. It is not supplied to any Russian army units.

Kaktus (4S24)


  The new ERA kit is very much similar to the earlier 4S20 kit, but is vastly superior in all areas. The only way the 4S22 kit distinguishes itself is by the bevel on the top edge of the side boxes. The boxes are completely resistant to armour piercing and incendiary bullets of the 7.62mm, 12.7mm and 14.5mm calibers, and are also immune to a napalm attack, like its predecessor. More specifically, the boxes can resist 14.5mm B-32 armour-piercing bullets from a distance of 50m, and resist all armour piercing bullets of calibres smaller than that, from any distance.

Kaktus can reliable protect (at least 0.95 reliability rate) the vehicle from RPG attacks with PG-7V, PG-7VL, PG-9V and PG-9S warheads, and Kaktus is also anti-tandem warhead. Video evidence has shown that it is capable of defeating the PG-29V warhead from an RPG-29. The boxes also provide double purpose protection against autocannon shells. The boxes can absolutely protect the underlying armour from 23mm APDS shells from a distance of 550m, and 30mm AP shells at an angle of 60 degrees (from the perpendicular) from point-blank range.

  Each box weighs 1.36kg, and the explosive charges contained within weigh only 0.14kg - much smaller than its predecessor's. This is indicative of its new approach on defeating shaped charges, which seems to involve more advanced materials, arranged in a new, more efficient configuration. The total mass of the package is 4150kg.

Despite the gain in weight, the BMP-3 is still completely amphibious. This is thanks to the large air spaces within the ERA boxes, which become flotation aids and balance out their own weight.



There is not much information about the distribution of ERA kits for the BMP-3, but it is assumed that at least a small number is available for Army groups in more dangerous regions. The Southern military district, for example.


UNKNOWN ERA KIT


There is another ERA kit variant with an unknown designation and unknown composition. It does not seem to be listed in NII Stali's catalogues, which gives some plausibility to the theory that the kit was developed by the UAE. Note that the kit does not cover up the passengers' firing ports.


Arena

  The Arena-E hard-kill defence system may be installed on the BMP-3. There are no reports of any BMP-3s in service in this configuration. The most likely reason is that the Arena can cost up to one-third of the BMP-3's price.


  Arena can intercept anything in a collision course with its host vehicle that is traveling at anywhere between 70m/s to 700m/s. Its reaction time is no more than 0.05 seconds and no less than 0.03 seconds. Its integrated computer can differentiate between rocket grenades with trajectories that will result in an imminent miss with actual threats. Tracking begins as the target flies within 50m of the vehicle. Arena only protects the vehicle from grenades and missiles coming from within 15 degrees of elevation and 5 degrees of depression relative to the vehicle, so Arena cannot protect the BMP-3 from diving top-attack weapons nor rocket attacks from above. It can, however, protect from non-diving top attack weapons like the TOW 2B or the BILL-2. Arena only protects within a frontal arc of 110 degrees relative to the orientation of the turret, so it cannot protect the vehicle from the rear.

  The radar mast has 6 individual arrays that can function independently, but coordinate and share data to provide a seamless picture for the ballistic computer.


One of the more obvious drawbacks is the highly exposed multi-faceted radar mast. Although it is modestly protected from fragmentation and shell splinters, it is very vulnerable to machine gun fire and large caliber snipers. Disabling this radar will prove costly for the operator, while the BMP-3 itself then becomes as vulnerable as before. Statistically speaking, mounting Arena may be very costly in the long run.

The entire Arena complex weighs 900kg.






SMOKESCREEN


We should note that armour is not the only protective element of an armoured fighting vehicle, and that concealment plays a critical role. The BMP-3 is also provided with six 81mm 3D17 "Tucha" smoke launchers armed exclusively with 3D, the smoke from which can conceal the vehicle in the visual and IR ranges. The grenades are fired ahead of the vehicle, where ever the turret is pointing. The bloom time for these grenades is 3 seconds, with an average lingering time of 20 seconds, but it may be shorter or longer, depending on environmental conditions such as heat, wind, humidity, altitude, and the like.

These launchers may be integrated into the Shtora-1 protection system, which links the launchers to laser detectors. When the vehicle is painted with a laser, smoke grenades will be launched immediately.

Bank of three smoke grenades, three on each side of the turret.

Alternatively, the BMP-3 can produce its own smokescreen, just like most of the Soviet armoured vehicles preceding it.




This is done by injecting a fine mist of diesel fuel into the exhaust manifold, or make use of its smoke grenade mortars. The former option is an an ingenious, inexpensive, extremely useful and near-inexhaustible source of anti-IR smoke cover - A little-known fact is that the smoke generated from this method is at the same temperature as the exhaust, thereby completely masking the tank's thermal signature. The only shortcoming of this system is the time taken to envelop the tank. A large number of battlefield maneuvers revolve around the use of this method of smoke generation for concealment.


NBC PROTECTION


The BMP-3 has an NBC protection suite, which hermetically seals the entire vehicle, and supplies clean air to the occupants. All interior surfaces are lined with borated polyethylene, whose function is to absorb neutrons and gamma radiation. It also works quite well as a spall liner.
  The nuclear protection system incorporates the GO-27 radiation sensor, which detects harmful particles and immediately seals the vehicle to prevent the ingress of contaminants or radioactive particles, but certain ports must be closed manually. For example - the bow machine gun seals. The NBC system generates a slight overpressure. The occupants are supplied with fresh air, which may be heated by the system. The ventilation system is fully filtered and includes an intake blower with a simple metal grid in the first stage, the SFT-200 cassette-type pre-filter for the second stage, and the FTS-200K filter-absorber for the third stage, ensuring that air distribution is constant and radioactive-dust-free.


FIREFIGHTING


  The BMP-3 uses the advanced Iney automated fire detection and extinguishing system with coverage in the engine compartment and the crew compartment.
  The engine compartment detection system is composed of four TD-1 temperature sensors, the relay/control box KR 40-2S, and two 1-liter fire extinguishers employing 114B-2 halocarbon extinguishing agents. Manual activation by the driver or the passengers is possible.
  The crew compartment system is composed of eight IR optical sensors and two 2-liter fire extinguishers, which have integrated pressure sensors and nozzles that limit the speed of spraying to not more than 150m/s (for safety reasons). The activating force for these extinguishers are provided by single-use pyrotechnic charges. The sensors will react to a flame of 0.45m x 0.45m in size at 1.5m distance. This system is automatic with manual activation provided, and is activated instantly when someone steps into the vehicle (via pressure sensors on rocker panels integrated into the hull floor).

  Two OU-2 hand-held fire extinguishers are located in the front left section for easy access by the bow gunners and driver, and two OP-2A fire extinguishers are located in the starboard side of the passenger's section. The OP-2A fire extinguishers are intended for retarding various substances, including napalm.
The smaller one is OU-2.


ERGONOMICS




The ergonomic qualities of the BMP-3 are far superior to its predecessors, and even quite favourable to some foreign designs in seating comfort and cargo capacity. The seating arrangement is similar to the BMD-1, but greatly expanded and far more spacious. The unusual layout of the vehicle is extremely efficient in its use of space, allowing up to 7 seated dismounts and an additional 2 passengers if the dismounts are not wearing much gear. In the diagram below, you can see the seating configuration.


There are five seats in a row just in front of the engine compartment, facing forward, and two seats beside the turret, facing forward as well. Normally, however, three dismounts sit at the row of five seats. The other two are usually folded down and used as a step when exiting through the rear. The internal space for each dismount is 1 square meter in this configuration - double that of the BMP-2, which was infamously cramped. The two bow machine gunners are considered passengers as well. The normal capacity of 7 passengers is the size of a normal motorized infantry squad.

Despite the unorthodox layout hampering the traditional method of transporting wounded infantry on stretchers, the BMP-3 can still do so. Instead of lying in the middle of the passenger compartment like with the Bradley or CV90 or any other conventional IFV, a stretcher-bound person would instead lie down over the engine deck. If the passenger compartment is in use, then one stretcher can be accommodated this way, as the stretcher would prevent passengers from dismounting. Otherwise, it is possible to transport two people on stretchers. If the vehicle is being used to transport injured soldiers from the frontline to an established checkpoint behind friendly lines, then there is no issue with transporting a full load of passengers in the passenger compartment plus two stretchers on the engine deck. Needless to say, the engine deck was not the most comfortable place to be, but this meant that a lot of people could be ferried per run.




When exiting the vehicle, the two extra seats are folded to allow dismounts to step over them and onto the engine deck. Due to the height of the engine deck, dismounting soldiers are at a risk of ankle injury if they jump off while the vehicle is in motion. To solve this problem, fold-out steps are placed just beneath the rear hatches.






The BMP-3 provides far more space for personal storage when compared to its predecessors. The layout provides ample space for passengers to place their kits, while their belongings may be lashed onto the side of the hull.






Riding in the BMP-3 is very comfortable. This is in part due to the good suspension, but also due to the superb weight distribution of the vehicle. Placing the engine and transmission at the rear, all of the fuel in the front to counterbalance it, and all the passengers and crew in the middle along with the turret ensures that the weight is optimally distributed, and this in turn results in a very smooth ride and very quick recuperation from dips and dives with minimal oscillations.


Besides seating space, the BMP-3 can carry an ungodly quantity of supplies and ammunition for its dismounts. See the diagram below.





There are spaces for a plurality of AK-74 and AKM magazines, "spam cans" of ammo and wooden crates of grenades (hand grenades and underbarrel grenades) to be stowed, as well as dedicated racks for two MANPADS launchers, and a variety of disposable rocket launchers. At least five RPG-7 rocket grenades can be stowed, but there is space for much more. There is plenty of space on the sponson shelves for any additional supplies, which may be secured by straps attached to the walls. A 56-H-574 26mm flare gun with twenty flares is also stored for emergency use. This storage is not inclusive of whatever weapons and gear the dismounts carry personally, or any supplies which may be added. The 2000-round boxes for the bow machine guns are better used by the dismounts, so one might consider that an additional source of ammunition.


In this film still, you can see the rear of the fighting compartment (turret), one of the seats beside the turret (mounted to the side, not to the floor), periscopes provided for the crews, and one of the seats arranged in a row opposing the engine compartment. Notice the "shelf" mentioned above
Seating arrangements, looking from the interior starboard side. All seats except the far side side seat are unfolded. You can also see a folded periscope on the ceiling.
Starboard side.

The dismounts using the side firing ports may aim their rifles through the TNP3VE01-01 periscopes provided for them. They have moving reticles, pre-sighted for 600m for PKM machine guns, and are connected to the ball turrets by a fiber optic cable. The ball turrets are greatly recessed inward, to the point where the muzzle of a firing port weapon will not protrude from the hull side. There is a lid which closes on the exterior of the firing port, which is to seal the vehicle from radioactive and chemical contaminants.


In this photo, you can see an OU-2 manual fire extinguisher, the racks for storing ATGMs, the gunner's station, and a Greek man.
Notice the fact that the space between the fighting compartment (turret) and the hull side has enough space for soldiers to shimmy through.
This allows the bow machine gunners and driver to escape through the rear in an emergency.

The three OU-2 manual fire extinguishers placed around the hull interior may be remotely activated by one of three buttons. One available to the driver, one for the commander and one for passengers in the passengers' section.


You can see the firing port extensions, which are now half open (split-hinged). It is quite obvious from this picture that there is no other way to aim his rifle in the firing port except through the TNP3VE01-01 periscope-aiming device provided.



In the photo below, you can see the autoloader elevator, which picks up rounds from the conveyor on the turret floor. You can also see that the middle seat in the row of three is folded. If unfolded, the BMP-3 can seat up to a true maximum of 7 passengers, although they will have to squeeze very uncomfortably if they are fully geared.




Provisions include a compressed air canister for starting the engine if the starter fails, compressed oxygen canisters for passengers in case the vehicle sinks, medical kits, and various other odds and ends.


Door handles

There are two more man-sized elliptical top hatches on top of the rectangular top hatches.


Two elliptical hatches. Note the rear-facing periscope.

These hatches are intended for passengers to aim their MANPADS from. A soldier can open the hatch, crawl onto the engine deck, and stick himself out to aim. This gives the BMP-3 the same ad-hoc fire-on-the-move air defence capability as its predecessors, which would otherwise not be possible due to the unusual layout of the BMP-3.




On the topic of troops' opinion on it, it is true that the unusual method of exiting the vehicle is a source of regular bemoanings. The effort required to exit the vehicle is much more than that required for IFVs with large, powered rear hatches such as the M2 Bradley, Marder IFV, Warrior, etc. This video shows that very clearly. The dismounts must heave the top hatches open, then swing the rear hatches open before finally jumping out, and that is in addition to the fact that stepping onto the engine deck from the passenger compartment is not an easy task already for fully geared troops. However, this issue is not serious enough to warrant a completely negative assessment from troops, although inconveniences in the heat of combat does give a trooper grievances and poor impressions on the vehicle. Fortunately, the lack of comfort when exiting the vehicle seems to be the only negative comment on the BMP-3 by the troops. There have been no other complaints mentioned so far, and the BMP-3 is definitely not regarded as a poor design overall.

To improve crew comfort, a KBM-3M2 air conditioning system may be installed, with or without a TBE auxiliary power unit. The time of continuous operation is not less than 8 hours. The air conditioner operates at 7 kW without the APU, or 8 kW with the APU. The air conditioner maintains a comfortable temperature of 25 to 29 degrees Celsius (adjustable), and can operate in ambient temperatures of up to 50 degrees Celsius, and with 45% relative humidity (to interior humidity). Cool air outlets are located at head level of each and every occupant in the vehicle, blowing cool, refreshing air in their faces. Ahhh.





The air conditioner occupies the empty dorsal space along the engine deck. It scarcely affects the ease of dismounting, and is more of a nuisance to anybody on a stretcher lying beside it more than anything.

The TBE auxiliary power unit is a miniature diesel engine, with an output of 2.5 kW.



DRIVER-MECHANIC'S STATION


The driver is provided with a motorcycle-style steering bar. The steering gear is of a differential type, with hydrostatic drives, providing good driving comfort.


(Old driver's instrument panel) On the steering bar , you can see two white buttons to control firing of the two bow machine guns. Left button for left gun and right button for right gun. The circular middle button is a horn.

Driver's hatch, with four periscopes. The front-facing periscope is replaceable with a night-vision one.

The driver has a healthy number of controls in front of him. He can control track tension, all water-travelling related controls, driving lights, firefighting equipment, the smokescreen generator, the NBC protection suite and the bow machine guns, among the usual driving-related indicators and gauges. He is provided with a GPK-59 gyrocompass (pictured) for rudimentary directional navigation. The gyrocompass is useful when driving at night and for normal orienteering.


Driving visibility is provided by four TNPO-170A periscopes, three located right in front of him for forward viewing, and another one pointing left. For night driving, the forward periscope can be replaced with TNPE-1B night vision periscope. The TVNE-1B nightvision viewer may be installed in lieu of the standard ones for nighttime driving. The driver's seat is adjustable for height, but taller drivers must still stoop slightly to peer into the driving periscopes - a universal peculiarity of all Russian AFVs, which is why Russian AFV drivers universally prefer to drive with the hatch open and the seat adjusted to maximum height in non-combat situations.


The new TSE-1 universal day-night driving periscope increases the viewing range of the driver at night. Plus, it does not use IR lamps, so that there are no longer any unmasking factors. Installation of the TSE-1 requires the newer driver's panel to be installed beforehand. It is a binocular passive sight with a 42x9 degrees field of view, and a 250m vision range during nighttime.


Original driver's workstation.

New driver's instrument panel

Latest driver's instrument panel, possibly Larisa

An IUSSH-688 "Larisa" electronic chassis control system may be installed. "Larisa" serves to observe chassis conditions and inform the driver of abnormalities through displays and voice messages. It is unknown if this system has been implemented on any BMP-3s in service, although apparently it is a component of the BMP-3M. It is highly unlikely that "Larisa" is present in significant numbers in currently serving BMP-3s of the Russian armed forces.



MOBILITY


UTD-29M Diesel. This engine has a fuel consumption not exceeding 250g/kWh

The BMP-3 is powered by a compact UTD-29M liquid-cooled diesel engine with an output of 500hp, generating a power-to-weight ratio of 25hp/ton. The engine is placed in the rear. The transmission is a four-speed, hydromechanical planetary type, with one reverse gear. The engine can operate up to no more than 3000 m altitude (high mountainous peaks). Above that, the air would be too thin for operation. There are 6 rubberized aluminium roadwheels with independent torsion bar suspension and 3 rubberized return rollers on either of the two tracks. The first two frontmost roadwheels and the rearmost roadwheel each have a telescopic hydraulic double-action shock absorber to improve ride smoothness. Ground clearance is 0.51 m. This is a huge improvement over the BMP-2, which had a ground clearance of 0.42 m, and an even bigger improvement over the BMP-1, which had just 0.39 m of ground clearance.

Ground pressure with standard tracks is 0.61kg/sq.cm, which is lower than the BMP-2's 0.63kg/sq.cm despite the huge gain in weight. The 380 mm-wide tracks are of a dual-pin type, with rubberized insoles and the option for asphalt-friendly rubber pads available. The rubberized insoles reduce wear and tear and also reduce noise and vibrations, giving a more comfortable driving experience.

The BMP-3 weighs 18.7 tons empty (non-combat configuration), and nearly 20 tons fully loaded.

With the UTD-29M engine, the BMP-3 can reach a top speed of 70km/h (43.4 mph) on paved roads, and travel at an average speed of 45km/h (28 mph) cross country. Reverse speed is 20 km/h on paved roads. The BMP-3 can climb a 0.8 m-high vertical wall, and cross a trench 2.5 m wide, or even wider if the driver decides to jump it, which isn't very difficult given how quick the BMP-3 is. The power-to-weight ratio with this engine is 26.7 hp/ton empty, or around 22.5 hp/ton when fully combat laden, which is superior to most modern contemporaries. With 700 liters of fuel carried in the frontal internal fuel tank, the BMP-3 has an autonomous range of 600 km on paved roads, or about half that if travelling cross country.

The BMP-3 can climb slopes of 60% gradient, and drive along a 30 degree side slope. Good traction allows the vehicle to stop halfway up a dry dirt slope of an aforementioned gradient and remain still without slipping. This video of Greek military exercises  perfectly illustrates the great agility of the BMP-3. Also, the driver is putting the smokescreen-generator to good use in this particular clip.

It is interesting to note that the original UTD-29 engine was only installed on the very first batch of BMP-3s, then in testing. As of 1986, all serial BMP-3s have the slightly improved UTD-29M installed. Alternatively, the BMP-3 may instead have a UTD-32 installed, which has an output of 660 hp. The latest BMP-3 modification might also include the installation of a newer UTD-32T diesel engine, slightly improved over the UTD-32 from 1999. Specific improvements are not known.

Both the exhaust and radiator are located on the starboard side of the vehicle, one on top of the other. Exhaust gases are probably cooled by introducing air from the radiator before being expelled from the exhaust exit manifold. Both have internal louvers that must be closed before entering swimming.


Radiator
Exhaust exit manifold, which is perforated.
The engine is prone to overheating in extremely hot weather, as noted during the UAE trials. The cooling system is only adequate for its purposes in the hottest heat spells in a European climate, little else. A more efficient cooling system has existed since the trials' conclusion, and is currently installed on the BMP-3s operated by the UAE.

In this photo, you can see the rearmost roadwheel with its hydraulic shock absorber, the drive sprocket and its mud scraper.










In the photo above, you can see the exposed engine with the engine deck panels and side panels removed. Servicing the engine is incredibly simple on the BMP-3 chiefly because of how easy it is to remove the engine deck panels. Removal of the engine is also a very relaxed affair. It is only necessary to remove the frame from the spine running down the engine deck, and that isn't very difficult since there's nothing there.




Coolant is stored to the right-hand side, in the plum-coloured tank as seen in the photo above. Two 12ST-85R1 accumulators are located behind it. To the left-hand side is the exhaust and radiator. The exhaust outlet is at the starboard side of the hull while the radiator grille is on top.

Batteries, and coolant tank.


WATER OBSTACLES




The vehicle is amphibious, more so than its predecessors. In the water, it is propelled by two waterjets which are powered by the engine in lieu of the tracks. Maximum speed in the water is 10 km/h. The waterjets are a single-stage, axial, auger type with guide vanes. Changing direction in the water is achieved by powered closing of either of the two flaps on the waterjet nozzles; closing the port side flap causes the vehicle to turn to the left, and closing the starboard side flap causes the vehicle to turn to the right. The minimum turning radius is 6 to 7 meters. The waterjets may be reversed, propelling the vehicle at a maximum of 2.5km/h. Turning is still possible in reverse. If the water jets malfunction while in the water, the vehicle may still propel itself using its tracks. The average speed in the water will reduced to a measly 4 km/h.


An especially seaworthy variant of the BMP-3, the BMP-3F, is pictured below.





The BMP-3 sails very well in the water. It can endure conditions up to sea state 3, and fire accurately in sea state 2 - an admirable achievement. It is worth noting that unlike the previous BMPs, the BMP-3 driver does not need to swap his periscope for a special extendable one, which would be used to peek over the trim vane. With the BMP-3, the wave breaker works on a different principle, never extending above the glacis. Needless to say, this is entirely beneficial to the driver, and he does not need to rely on the commander to navigate while swimming.

An electric bilge pump is installed. Standard procedure calls for the driver to activate it before the vehicle enters water. This is insurance against accidental flooding of the hull, or flooding due to the hull being compromised from enemy fire. The bilge pump allows the BMP-3 to return to dry land safely without sinking, and at least give the occupants a fighting chance to survive catastrophic hull damage while in the water (hit by tank shell, for example).





Water jet propeller.


Before entering the water, the vehicle must first erect a telescopic ventilation tube, which serves supply air to the engine. Since the tube opens up a new airway, it has its own air filter, substituting the ones on the hull top. The tube rises about 400mm above water level.


The circular lid is the ventilation tube, which would protrude upon the driver's command.
Swimming BMP-3. The ventilation tube is raised.

A more seaworthy minor variant of the BMP-3 designated the BMP-3F is available for Naval forces.


Notice the much taller ventilation tube, as compared to a basic BMP-3's.

This variant is touted as being capable of staying afloat for greatly extended period of time. The only exclusive difference between the BMP-3F and the BMP-3 is the ventilation tube, which is extended on the BMP-3F.



BREM-L




Due to the BMP-3's significantly increased weight compared to the earlier BMPs, it could not be evacuated from awkward positions by a BREM-2 Armoured Recovery Vehicle. As a result, the BREM-L was developed. Because the BMP-3 uses aluminium alloy armour in addition to steel contrary to the purely steel construction of its predecessors, argon arc welding equipment is needed, which is carried on the BREM-L, among other things. It is crewed by 3 persons, with additional space for 2 auxiliary personnel.


The BREM-L's crane is of a hydromechanical type with a maximum load capacity of 5 tons, or 11 tons if a double pulley block is used. It also has a hydraulic rescue winch with a pulling force of 140 to 160 kN. The winch cable is 150m long.


The BREM-L has a single PKTM in a rotating cupola for self defence, for which 1000 rounds are provided in a single belt. Mobility characteristics are identical to that of the parent BMP-3, and also weighs about the same at 18.7 tons dry, or 19 tons fully loaded. Surprisingly, the BREM-L is also amphibious, which is very neat, because it means that it will be able to follow the BMP-3 anywhere it goes. It uses its built-in engineering dozer blade as a trim vane.




Servicing, maintenance


There are some allegations that the BMP-3 is unreliable and disliked by troops due to its unreliability, but those allegations are completely untrue. It is true that the BMP-3 had teething problems - a common issue for many AFVs. Mechanical failures were present in relatively high rates. The average number of failures per 1000km travelled was as follows: 17.1 in 1986, 3.6 in 1988, 2.8 in 1990, and in 1992, less than 1 per 1000km. The problems were mostly related to parts quality, which resulted in Kurganmashzavod slightly modifying some components or improving the manufacturing process. The lack of experienced mechanics, tooling and equipment played their role as well; a lack of argon welders, for example. Also, the rear placement of the engine meant that the replacement of the engine with the three crew members only and under combat condition was a staggering 20 hours. However, teething problems are common and all of them are now completely rectified, although so far there have been no resolutions for simplifying the removal of the engine. Remember that the BMP-3 was not officially adopted into the Russian Army until 1990, and that the equipping of brigades with this vehicle beforehand was purely for trialing purposes. BMP-3 failures and malfunctions have never been mentioned as an issue by any armoured units in active service for more than two decades and counting.


Service history, operators, future service


It is an undeniable fact that the BMP-3 saw combat in Grozny, while the possibility that they were used in the second campaign and in Georgia during the South Ossetian war remains debated.

Regarding Chechnya:




The text states that the BMP-3 in the picture provided fire support due to the lack of tanks. The three people are not sitting on the vehicle. Rather, they are sticking out of their hatches.

There is photographic evidence of a BMP-3 destroyed in Grozny.

A BMP-3 turret husk being dragged. It had been blown off due to the detonation of interior munitions.

There are no other significant photographic accounts of the BMP-3 being involved in any other conflicts other than the two mentioned above. It appears that only a small number was destroyed, which, in my opinion, is indicative of poor tactics more than poor engineering.


DISTRIBUTION


According to a Kurganmashzavod spokesperson, "more than 1500" BMP-3s have been produced as of 2015. On May 12, Russian news agency TASS reported that the Russian Ministry of Defence has signed a contract for the delivery of "hundreds" of additional BMP-3s to the Russian Army.

Credit to: http://militaryrussia.ru/blog/topic-174.html (Read this article for a good listing of operators and timelines of deals, up until 2010 or so)
As of 2011, BMP-3s are organized into companies. 10 BMP-3s are part of one company. Three companies are part of a battalion. A regular infantry brigade consists of Three battalions. Therefore, a total of 90 BMP-3s equip a brigade.

An approximated list of BMP-3s in the Russian army as of 2010-2011:

Military unitMilitary DistrictQtyNote
noFar Eastern0
noLeningrad0
9th Motorized Rifle Brigade (Nizhny Novgorod)Moscow120
4th Separate Guards Tank Brigade (Narofominsk)Moscow49
noVolga-Urals0
19-th separate Voronezh-Shumlinskaya Red Banner Orders of Suvorov and the Labor Red Banner Motor Rifle Brigade (n. Sputnik, Vladikavkaz)The North Caucasus0in 2009 announced plans to re-teams on the BMP-3. 90 BMP-3 in 2011 (3 Battalion 3rd Company on 10 BMP-3)
20th Separate Guards Carpathian-Berlin Red Banner Order of Suvorov Motorized Rifle Brigade (Volgograd)The North Caucasus12090 BMP-3 in 2011 (3 Battalion 3rd Company on 10 BMP-3)
36th Separate Guards Motorized Rifle Brigade (n. Borzya)Siberian120ex. 131st gv.msd
74th Separate Guards Motorized Rifle Brigade (n. Jurga, Kemerovo region)Siberian120
155th Marine BrigadePacific Fleet50?05.05.2010 announced plans to re during 2010
TOTAL in the Russian Armed Forces529The data may not be accurate. In our opinion - overrated.


The Russian Army is only modestly stocked with BMP-3s, with none in storage. The total number of figures could range from 400 to 600 as of 2014, and quite frankly speaking, the very notion of replacing the BMP-1 and BMP-2 with the BMP-3 is pure fantasy at this point.

In the April of 2007, the order to supply and overhaul BMP-3s in the Russian Army to BMP-3M standard was signed. Thus, we can be sure that the vast majority of Russian BMP-3s have SOZH sights and are capable of firing the latest ammunition. Various other improvements may manifest in various degrees.


EXPORT



The BMP-3 is a successful export item. A famous example was the UAE open IFV tender, in which the BMP-3 soundly defeated the British MCV80 and American M2A1 Bradley and went on to sell in large quantities. However, it should be noted that the BMP-3s participating in this tender had Namut FLIR sights installed, due to the lack of suitable indigenous ones of such type available for the BMP-3 at the time (1993). Up until sometime around 2005, the UAE has been operating with 1K13-2 sights, which have now been replaced with SOZH sights. The BMP-3s that the UAE uses were superior to Russian BMP-3s at the time, and still are, in some ways, due to them having FLIR, allowing them a significant advantage in night fighting. And the BMP-3Ms that were more recently delivered (2005) are clearly superior to the current standard of Russian ones chiefly due to the presence of thermal sights.


BMP-3 belonging to the UAE
Unfortunately, there have been reports of malfunctions related to desert operation during the BMP-3's testing phase for the UAE. Apparently, the cooling system for the engine was not effective enough, causing the engine to overheat too quickly. The particulate filtration system was not good enough to provide clean air during sandstorms and could not filter finely enough, which caused the engines to clog up after a long drive. Tracks falling off due to excessive sand was a problem as well. These problems were promptly resolved by modifying the filter and installing additional exterior rings around the drive sprocket and idler wheel. All UAE BMP-3s are modified thusly.
  The UAE has a total of 652 BMP-3s, and is the operator of the largest fleet of them.

In the Asian arena, the South Korean marines evidently value the BMP-3 (along with T-80Us) for their amphibious qualities. In 2005, they updated their BMP-3s to the standard of the Russian Army's. That is, they refitted their BMP-3s with SOZH sighting systems. Previously, the examples in their ownership had the 1K13-2 sight, which was the standard at the time when Russia traded 33 BMP-3s along with other military equipment as part of a debt reduction deal. Previously, South Korea had been unable to recreate the waterborne abilities of the BMP-3 their in their K21 IFVs (two of them sank, killing one crew member), thus securing the place of the BMP-3 in their supply chains. Contrary to what some believe, South Korea does employ the BMP-3 in active service, and not in the OPFOR (Opposing Force) role, which would be illogical anyway since North Korea doesn't have any BMP-3s. South Korea has a total of 70 BMP-3s, 33 of them were supplied under the debt reduction agreement and 37 with Vesna-K sighting systems of them were purchased under their own initiative . All South Korean BMP-3s are NATO-compliant.


South Korean BMP-3. Notice the radio antenna, which is similar to an American Bradley IFV's
South Korean BMP-3s during a river crossing exercise
The Indonesians possess 37 BMP-3Fs, and are in active service. The Indonesian Marines were reportedly extremely pleased with them. During an exercise shortly after the completion of the delivery, all participating BMP-3Fs hit all targets with its entire armament after landing on a coast.

Indonesian BMP-3F, with Russian ambassador in plain clothes.


The price for an individual BMP-3 is stated to be $800,000 to $950,000 during the late 90's. The price in the present day is not known, though there's no reason to believe that it exceeds $2,500,000 per unit.



References:

http://army.lv/?s=251&id=57 - http://army.lv/ru/bmp-3/foto/251/57#info

http://armor.kiev.ua/Tanks/Modern/BMP3/bmp3_5.php

https://www.youtube.com/watch?v=xiYPox6Hycg&list=UUM-z1vR7XbTThPvEjKZSM2Q

https://www.youtube.com/watch?v=bPLCVL_XFsA&list=UUM-z1vR7XbTThPvEjKZSM2Q

http://fofanov.armor.kiev.ua/

http://www.kurganmash.ru/en/machines/bmp3u/fire_power/vesna-k/

http://www.kurganmash.ru/en/machines/bmp3u/fire_power/sozh/

http://catalog.use.kiev.ua/index.php?action=setLang&lang=eng&search_val=&page=catalog&view=product&id=440&cat_id=&eid=

http://otvaga.narod.ru/Otvaga/armour-rus-bmp3/a_bmp3m.htm

http://www.znamia.ru/eng/production_catalogue1/technique/military/bmp_3/

http://www.hudi2.republika.pl/BMP-3.htm

http://www.kubinkamuseum.ru/index.php?option=com_content&view=article&id=75&Itemid=273

http://www.historyofwar.org/articles/weapons_bmp3.html

http://worldweapon.ru/tank/bmp3.php

http://www.tulamash.ru/en/prod_2a72.htm

http://www.rbs.ru/vttv/99/firms/belomo/e-1k13-2.htm

http://belomo.by/en/catalog/optical-and-optoelectronic-products/pribory_navedeniya/soj

http://militaryrussia.ru/blog/topic-174.html

http://www.kbptula.ru/en/productions/armament-for-light-and-hard-armour/3uof19

http://www.youtube.com/watch?v=CjJzvwPLb84

http://otvaga2004.ru/bronya-pehoty/advanced-ifv/kak-prodavali-bmp-3/

http://militarypribor.ru/en/30-mm-cartridges-for-combat-vehicles

http://www.rbs.ru/vttv/99/firms/emashina/e-ineye.htm

http://vestnik-rm.ru/news-4-13178.htm

http://belomo.by/catalog/optical-and-optoelectronic-products/pribory_navedeniya/soj

http://armyman.info/biop/snaryady/31282-100-mm-unitarnyy-vystrel-3uof17-s-oskolochno-fugasnym-snaryadom-3of32.html

http://coollib.net/b/230801/read



14 comments:

  1. Possibly the most in depth look at the BMP-3 that I have ever seen. I'm building a scale model of this IFV and it answered every question I had and provided plenty of good reference pictures. You have no idea how awesome this is!

    ReplyDelete
  2. All of this information is wonderful, I will be following you in your quest to quell this misinformation. I wonder what the Russians have in mind as its replacement if it is good enough to warrant replacing the BMP-3M.

    ReplyDelete
    Replies
    1. I am cautious but am eagerly waiting to see what they are truly like. What they have for its armament is something I am especially eager to see.

      Delete
  3. This comment has been removed by the author.

    ReplyDelete
  4. Does the main gun barrel recoil? If so how far?

    ReplyDelete
    Replies
    1. The 100mm cannon has a recoil "stroke" of 0.4m upon firing.

      Delete
    2. This comment has been removed by a blog administrator.

      Delete
  5. Interesting, although I was hoping to see references to the more "exotic" variants, like the Derivatsiya and the radicaly reconfigured Dragoon.

    ReplyDelete
    Replies
    1. I only write about the variants that are currently in service, or planned to be in service in the near future. I will not write about future projects, as I will only be repeating what other sites with actual journalists and insider sources are reporting.

      Delete
  6. "The accuracy of stabilization while the vehicle is on the move at a speed of 30 km/h is 3 mrad, which translates to 0.4863 mils, which means that the sight has a maximum deviation of 0.49 m at a distance of 1000 m"

    3 mRad is 3 meters at 1000 meters distance.

    ReplyDelete
    Replies
    1. Just tought that you might want to reconsider the "maximum deviation of 0.49 m at a distance of 1000 m"
      Article is 5/5 otherwise.

      Delete
    2. Ah, you're right. I have removed that part entirely. The 3 mrad figure came from the manufacturer's website: http://belomo.by/catalog/optical-and-optoelectronic-products/pribory_navedeniya/soj but it must be a typo. If true, then even TSh2B-41U, made in 1972, has a more precise stabilizer system than SOZh. Not just more precise, but more precise by two times! According to that website, the error is 3 mrad, or, as you say, 3 meters at 1000 m distance. That means that the deviation of the actual point of aim from the point of aim indicated by the reticle is 3 meters at 1000 m! This error was only 1.5 mrad for TSh2B-41U, but it wasn't even intended to be good enough to fire on the move. Its stabilizer is only used when the sight is disconnected from the cannon's "Meteor" stabilizer. It is even more strange for SOZh to be so horribly imprecise when we consider that the 2E52 weapons stabilizer is electronically slaved to SOZh. If you can read Russian, this forum post will explain: http://forums.airbase.ru/2015/02/t90975--pritsel-tshs-41u.9579.html

      Delete
